Pegson 900 Cone Crusher
Author:liming Post Date:2012-9-24
Pegson 900 Cone Crusher:

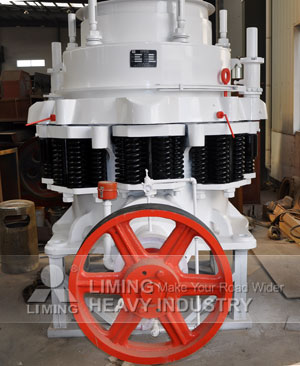

pegson 900 cone crusher
Pegson 900 cone crusher is suitable for crushing medium hardness ores and rocks more. Reliable structure, high production efficiency, easy adjustment, economic characteristics. Spring insurance system is the overload protection device allowing metallic foreign body through the crushing chamber without endangering machine, dry oil or water seal forms, powder and lubricants isolation to ensure reliable operation. Crushing cavity type is decided by the ore use standard applicable to the broken; midsize suitable for crushing; short head for ultra-fine crushing.
Pegson 900 Cone Crusher Works:
Pegson 900 cone crusher the working portion of the two frusto-conical body, one is fixed to the cone 2 (also known as the outer cone) and the other is movable cone 1 (also known as the inner cone), Figure. Fixed cone 2 is allowed to stand, and is part of the rack, moving cone mounted on a hinge point O, and its lower end movably inserted in the eccentric bushing, therefore, the center axis of the axis OO 'of the center of the fixed cone, with a dynamic cone OO1 intersects bevel. When OO1 around OO 'rotation, moving cone for a partial spin along the inner surface of the fixed cone movement. Moving cone to move closer to the fixed cone section of the department of materials by moving cone extrusion, impact and bending, crushing chamber; deviation from the fixed cone moving cone material has been broken under its own weight from the conical bottom unloading, discharge port 3, 4 loading material from the feed inlet.
Pegson 900 Cone Crusher Features:
1, Moving cone continuous rotation, material crushing process and unloading process along the work surface alternately continuous, high productivity.
2, Material is sandwiched between the two cones, by extrusion, bending and shearing action, crushing easier to low power consumption.
3, Product Liaoduo more uniform, was a cube shape, dynamic cone work surface more uniform wear.
4, Structure Introduction, cone crusher main structure frame, the horizontal axis, moving cone, balance wheel, eccentric sleeve, on the broken wall (fixed cone), under the crushing wall (dynamic cone), fluid couplings, lubrication system, hydraulic system, control system, such as a few parts.
5, Movable cone and fixed cone is upright, dynamic cone swing, in parallel with a gap equal between the movable cone and fixed cone crushing chamber discharge port near evenly finished Liaoduo. The small size of the feed inlet, are able to handle after the initial crushing of materials.
6, In this series cone crusher uses dry oil or water-tight manner, the dust and impurities can not enter the human-machine body, thus ensuring Run edible vegetable oil clean, extending the sliding bearing, thrust ball bearings life, making the operation of the machine reliable.
Liming Pegson 900 Cone Crusher:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing all types of crushers and mobile crushing plant, reached the leading level in the world. 900 cone crusher, we can produce good quality at affordable prices. If pegson 900 cone crusher machinery and equipment you need or want to learn more about our production crusher and mobile crushing plant, please contact our online staff. We will provide more information and better services.
