Pioneer 4240 Crusher
Author:liming Post Date:2013-3-9

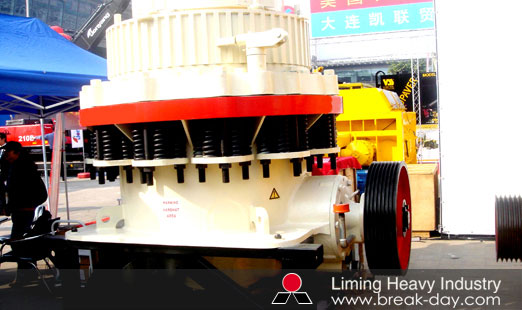

Pioneer 4240 Crusher
Pioneer 4240 Crusher Introduction:
Pioneer 4240 crusher is in the introduction, the basis of absorbing foreign technology, based on customer demand, based on a set of laminated crushing principle and multi-break less grinding conceptual design developed high swing frequency, optimized cavity shape and reasonable stroke in one modern highperformance crusher. CS series spring cone crusher can be widely used in metal and nonmetal mines, cement plants, construction, sand and metallurgical industries. Apply to iron ore and non-ferrous metal ore, granite, limestone, quartzite, sandstone, cobblestone.
Pioneer 4240 Crusher Working Principle:
Work, by the motor through V-belts, pulleys, drive shaft, small bevel gear, a large bevel gear driven eccentric sleeve rotation, crushing cone axis is forced to move to the next in the eccentric sleeve rotation swing, making the surface of the crushing wall sometimesclose to and sometimes leave the rolling acetabular wall surface, so that a ring of material in the fixed cone and movable cone crushing cavity constantly under attack, squeezed and bent and broken. After repeated squeezing, shock and bending, the material crushing to the required particle size, the lower part of the discharge.
Pioneer 4240 Crusher Main Structure:
Pioneer 4240 crusher mainly consists of frame, fixed cone assembly, moving cone assembly, spring mechanism, the Ministry of bowl-shaped shaft frame and drive components. Auxiliary part of the electrical system, lubrication system, and hydraulic clean cavity system.
Fixed cone assembly is mainly composed of adjustment sleeve, rolling acetabular wall, mainly by the spindle of the moving cone assembly, dynamic cone crushing wall composed, transmission part is mainly composed of large pulley, drive shaft, a small bevel gear, a large bevel gear and other components.
Technical Advantages:
Spring cone crusher, after senior experts continue to carefully designed to improve the structure is more reasonable, with more technical advantages:
1, moving cone continuous rotation along the working surface of the material crushing process and unloading process alternating continuous, high production efficiency.
2, the operation is easy to install. The machine adopts the secondary vibration isolation foundation vibration, and noise, and the installation without the enormous foundation and anchor bolts.
3, according to the material layer crushed theoretical "design, product Liaoduo uniform cubic shape, more uniform wear of the moving cone surface.
4, moving cone and fixed cone are upright, dynamic cone swing, in the crushing chamber near the discharge port, parallel with a gap equal between the movable cone and fixed cone evenly finished Liaoduo.
5, dry both oil or water sealed, dust and impurities can not into the man-machine body, thus ensuring the Run the cleaning of edible vegetable oil, extending the sliding bearing, thrust ball bearings life, making the machine reliable operation.
6 parts all processing using high quality materials, longer machine life.
Liming Pioneer 4240 Crusher:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy pioneer 4240 crusher manufacturer capable of producing all types of pioneer 4240 crusher, good quality and reasonable prices. Liming Heavy Industry production of pioneer 4240 crusher is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized pioneer 4240 crusher is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of pioneer 4240 crusher, please contact us directly. We aim to provide you with the best pioneer 4240 crusher and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
