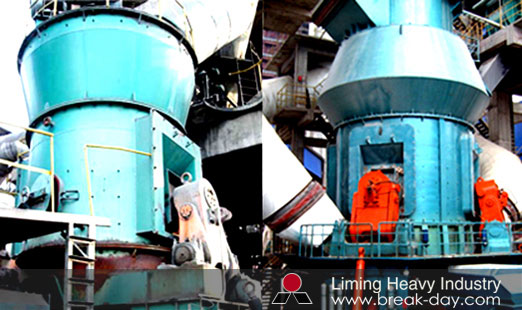

VRM type Mills
VRM type Mills:
The VRM type mills means vertical roller mill, which is to address the low industrial mill output, energy consumption and higher technical difficulties to absorb European advanced technology combined with years of state-of-the-art mill design and manufacturing philosophy and market demand, after years of painstaking design Improved large grinding equipment. Widely used in glass fiber industry pyrophyllite powder high yield grinding fineness; gangue powder production powder production of the coal industry; powder for the production of the large production of a variety of stone raw materials for the stone industry; each of the non-metallic minerals industry kinds of low, middle and high hardness hundreds of massive ore powder production preparation; hundred kinds of industries of various materials production powder preparation.
Vertical milling machine is the set of crushing, drying, grinding, grading conveyor in one system is simple, compact layout, covers an area of approximately 50% of the milling system, and open layout, so a large number of lower investment costs. Massive, granular and powdery materials can be used to grind the required powdered materials.
Products Include:
Suitable for metallurgy, electric power, coal preparation of the cement industry vertical coal mill; apply to vertical ore mill grinding non-metallic minerals; superfine vertical mill suitable for industrial flue gas desulphurization and waste utilization; applicable to the cement vertical raw mill, such as the production of dozens of specifications.
Applications:
Large production of special steel plants, thermal power plants, cement plants, coal preparation and coal gangue powder production; dedicated power plant desulfurization limestone milling; hardness of non-metallic minerals industry hundreds of massive ore powder production preparation; special steel mills steel slag and blast furnace slag grinding plant slag and fly ash; special glass fiber industry quartz, pyrophyllite powder production high grinding fineness; specialty chemicals industry stone raw materials production powder production; hundred kinds of industries of various materials production powder industrialized preparation. At the same time in the grinding of slag powder and cement clinker pre-grinding, also has good prospects for development.
How it Works:
Motor through reducer drive disc rotation, the hot air from the inlet into the vertical mill, the material falls from the feed opening disc central centrifugal force, its material the millstones edge from the millstone central to moving on after disc annular groove when subjected to the grinding rollers of the roller compacted and crushed, the crushed material to continue to move to the refiner disk edge, until it is taken away by the air ring at the gas stream, while the large particulate material falling to the disk on continued pulverization. The flow of material through the upper part of the separator, the effect of the guide vanes, the coarse material from the cone bucket falls millstone, powder together with the airflow in the grinding, and collected by the dust collector system, a powder was collected i.e. mill to grind the product for the legislature. The material in contact with the gas in the housing during the drying, to achieve the desired dry product humidity. By adjusting the separator-oriented point of view of the fan blade (small vertical mill is not adjustable) and the rotational speed of the rotor of the separator, the products required thickness can be achieved.
Liming VRM type Mills:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trusted VRM type mills manufacturer, capable of producing all types of VRM type mills, excellent quality and reasonable prices. Liming Heavy production the VRM type mills is the successful experience of the similar products at home and abroad, and devote themselves to come up with an energy-efficient crushing equipment. Medium-sized VRM type mills is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
Compared to the VRM type Mills with traditional vertical milling machine has unparalleled advantages, the application of a number of national mill patented technology, innovative design, reasonable structure, small footprint, low power consumption, long service life, and easy wear parts is low cost, and high cost performance. Its technical performance has reached world-class advanced level, products sold at home and abroad, and has been well received! If you need a the VRM type mills and related machinery and equipment, or would like to know the the VRM type mills related information, please contact with our online staff. We will provide more information and better services.
