Comb Plate Crusher
Author:liming Post Date:2013-6-18

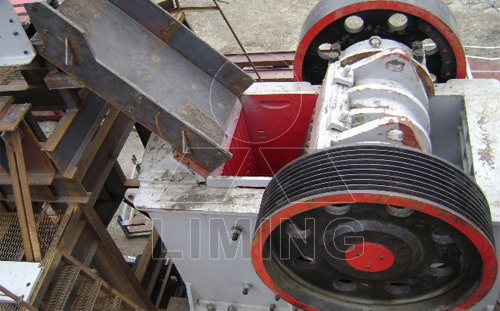

Comb Plate Crusher
Comb Plate Crusher Introduction:
Comb plate crusher can be different sizes of raw materials, broken into small pieces of uniform particles, comb plate crusher either supporting and beneficiation equipment, sand and gravel equipment can also be used alone. comb plate crusher can produce the cornerstone of the road, railway ballast stone and construction sand and gravel aggregate. The comb plate crusher divided into coarse crushing comb plate crusher and crushing comb plate crusher, which is commonly referred to as PE series comb plate crusher and PEX series comb plate crusher. comb plate crusher series, with the crushing, product uniform particle size, simple structure, reliable work, easy maintenance, low operation cost characteristics.
Comb Plate Crusher Application:
Comb plate crusher for cement, coal preparation, power generation and building materials, to adapt to the crushing of medium hardness and brittle materials, such as limestone, coal. The maximum compressive strength of not more than 1500kg/cm2.
Comb Plate Crusher Working Principle:
Comb plate crusher way for music moving extrusion type, motor-driven belt and pulley, through the eccentric shaft to make the movable jaw up and down movement, when the movable jaw rises larger angle between toggle plate and moving jaw, thus promoting the movable jaw plateclose to the fixed jaw plate, at the same time the material is squeezed, rubbing, grinding, such as multiple broken; when the movable jaw down, the angle between toggle plate and moving jaw smaller, movable jaw plate trolley spring left jawboard, crushed material is discharged from the crushing chamber mouth cyclical With the motor continuously rotating crusher mobile jaw crushing and nesting to achieve mass production. comb plate crusher, crushing, product size uniform, simple structure, reliable operation, easy maintenance, low operating cost characteristics. Our product specification is complete, the device of choice for primary crushing.
Operating Environment:
In the process of huge stones are broken into small stones, the first crusher is usually referred to as a "master" crusher. The longest history, but also the most solid crusher comb plate crusher. comb plate crusher feeding the material from the top of the entrance into the crushing chamber containing jaw teeth. Jaw teeth with great force the material to the top of the wall will be broken into smaller stones. Support the jaw movement is an eccentric shaft, this axis throughout the body architecture. The eccentric motion is usually generated by a flywheel fixed on the shaft ends. Flywheel and often eccentric support bearing spherical roller bearings, bearing extremely harsh working environment. The bearings must withstand tremendous impact load, abrasive sewage and high temperature. Although this work is extremely harsh environment, comb plate crusher still need to work very reliably.
Liming Comb Plate Crusher:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy comb plate crusher manufacturer capable of producing all types of comb plate crusher, good quality and reasonable prices. Liming Heavy Industry production of comb plate crusher is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized comb plate crusher is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of comb plate crusher, please contact us directly. We aim to provide you with the best comb plate crusher and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
