Cone Crusher 3d Model introduction
Author:liming Post Date:2012-2-15
There are two kind of cone cusher, one is spring cone crusher, the another is Hydraulic Cone Crusher.
In order to show this, we have to explanation the main differences of them as follow :
Spring Cone Crusher

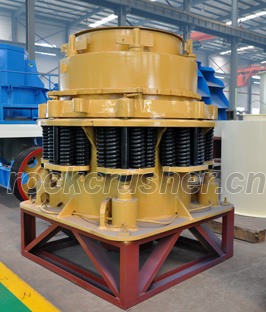

spring cone crusher 3d model
Description:
Spring cone crusher, the introduction of foreign technology, based on customer needs, based on laminated crushing principle and the multi-break less what the conceptual designers developed set of high pendulum frequency, to optimize the cavity type and reasonable stroke in one of the modern high-performance crusher.
The cone crusher is the cone break one of the most widely used and most stable performance, especially spring safety system of the overload protection device to the iron through the crushing chamber without jeopardizing equipment, isolation of a unique sealing system to make powder and lubricants, which can ensure reliable device to work. Efficient cone crusher from the primary crushing to the chronology, from the fixed crusher, mobile crusher station; from the special primary crushing to the lubrication of the crushing cavity to choose from, so you can crushing chamber type fragmentation process; points multi-point control independent lubrication system ensures double protection of the models bearing lubrication, and can realize the whole automatic safety protection.
How it works:
As the 3d model, cone crusher work by the motor through the belt, pulley, shaft, small bevel gear, the large cone gear driven eccentric sleeve rotation, crushing cone axis line in the forced move of the eccentric sleeve, a rotating swing, making the broken wall surface and sometimes near and sometimes leave the rolling acetabular wall surface, so that the material broken in the fixed cone and movable cone circular cavity constantly under attack, squeezed and bent and broken. After repeated extrusion, impact and bending, the material broken to the required particle size by the lower part of the discharge.
Hydraulic Cone Crusher
hydraulic cone crusher 3d model
Description:
Hydraulic cone crusher through the use of the intergranular laminated design principles of the special crushing cavity and contrast to match the speed to replace the traditional single particle crushing principle, to achieve selective crushing of materials, a significant proportion of product fines and cube content to a great extent to reduce flakiness materials. Its unique lubrication system design, greatly improving the service life of equipment. High-performance non-contact labyrinth seals, no wear and improve the reliability of blocking dust, virtually eliminating the original spring cone crusher oil mixed with water and other common failure to improve life. I produced a series of highly efficient Hydraulic Cone Crusher production capacity, the best products of stone shape, and easy automatic control, with the greatest reliability and flexibility, and real users to create more value.
Main structure:
From the hydraulic cone crusher 3d model, we can see the main structure of the hydraulic cone crusher including feed hopper on the rack department, moving cone, the base row of hopper, drive shaft, belt, motor and other assistive devices, hydraulic lubrication station control cabinet.
How it works:
High efficiency Hydraulic Cone Crusher work when the motor through the belt, drive shaft, drive gear driven by the eccentric sleeve rotation, moving cone in the eccentric sleeve role rotary pendulum movement, the movable cone and fixed cone and sometimes near and sometimes deviate from. Materials continue to be squeezed in the crushing cavity, the impact of the broken, the broken material from the lower part of the discharge.
