Cone Crusher Price
Author:liming Post Date:2013-9-12

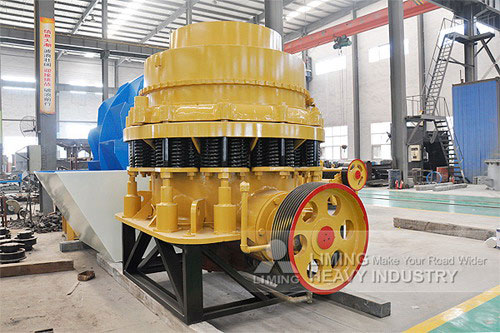

Cone Crusher Price
Cs Cone Crusher Introduction:
Spring cone crusher began in 1878, the United States invented the gyratory crusher with continuous crushing action, mainly used for compressive strength does not exceed a 300Mpa the ores and rocks (iron ore, limestone, copper ore, quartz, granite,sandstone, etc.) the breaking or crushing. The type crusher material layer crushed theory ", with hydrostatic broken, broken and high production efficiency, easy adjustment, economic energy and operating costs low, widely used in metallurgy, building materials, road construction, stone production of silicate industrial.
Cs Cone Crusher Main Structure:
Cs cone crusher mainly consists of frame, fixed cone assembly, moving cone assembly, spring mechanism, the Ministry of bowl-shaped shaft frame and drive components. Auxiliary part of the electrical system, lubrication system, and hydraulic clean cavity system.
Fixed cone assembly is mainly composed of adjustment sleeve, rolling acetabular wall, mainly by the spindle of the moving cone assembly, dynamic cone crushing wall composed, transmission part is mainly composed of large pulley, drive shaft, a small bevel gear, a large bevel gear and other components.
Performance Characteristics:
Spring cone crusher is used to the material layered select broken. The crushing chamber filled feed, play after a full range of extruded, cut and rub broken, since broken the purpose of the material to withstand the crushing chamber so broken parietal avoid direct contact with, and effectively prevent the liner mutual wear avoid materials contaminated metal pollutants, so that the vulnerability of the aircraft to reduce the wear and tear of consumable parts effectively extend the service life of the wear parts, crushing ratio is more than double that of other similar devices.
Static pressure crushing, crushing ratio increased, arbitrary strong product particle size, size can be adjusted. Has a certain relationship between the crushing force and eccentric static torque and speed of the aircraft. Adjusting the gap between the crushing chamber can easily adjust the desired crushing ratio.
Cs Cone Crusher Working Principle:
Work, by the motor through V-belts, pulleys, drive shaft, small bevel gear, a large bevel gear driven eccentric sleeve rotation, crushing cone axis is forced to move to the next in the eccentric sleeve rotation swing, making the surface of the crushing wall sometimesclose to and sometimes leave the rolling acetabular wall surface, so that a ring of material in the fixed cone and movable cone crushing cavity constantly under attack, squeezed and bent and broken. After repeated squeezing, shock and bending, the material crushing to the required particle size, the lower part of the discharge.
Cs Cone Crusher Fault Repair:
1, the oil temperature is too high. Reason: bad oil quality; insufficient oil; bearing damage. Remedy: change the oil, or fuel, or replace the bearings.
2, low oil pressure after oil pump start or the indicator no oil flow. Cause: low oil temperature; the tubing clogged or the oil pump is not working properly. Elimination of the way: the heat to raise the oil temperature; repair pipelines or oil pump.
3, hydraulic oil temperature rise. Cause: Tubing or blockage of the oil groove, the safety valve malfunction. Eliminate way: down to check repairs.
4, contains a large number of fine mud and impurities in the oil. Reason: sealed dust-proof device failure; plumbing blockage or leak caused by lack of water. Eliminate way: stop re-sealed or cleaning maintenance, replacement oil.
5, Crusher strong vibration, moving cone suddenly spin faster. Reason: poor lubrication of the spindle bushing package tight; moving cone sink or spherical thrust bearing damage; tapered bushing Shangcuan activities resulting in the lack of spindle clearance. Elimination of the way: the reasons to replace damaged pieces, to overhaul oil pump and pipeline.
6, Crushing or idling produces an audible splitting sound. Reason: liner relaxation; the moving cone or fixed cone lining round impact. Eliminate way: down to check the screw fastening the zinc coating off. Damaged screws or earrings, you need to remove the adjustment ring replacement screws and earrings; zinc layer off re-cast zinc layer; Check the liner ovality necessary machining.
7, the drive shaft rotary uneven, resulting in a strong percussion pulley rotation, moving cone does not move. Cause: gear badly worn or damaged; join key damage; spindle break. Elimination of the way: the downtime to replace the gear, and the meshing clearance to meet the requirements; replace the join key; replacement spindle to strengthen the work of the removal of iron.
8, Row of ore particle size increases. Causes: severe liner wear. The way to eliminate: Adjust the port of discharge, reduce the size of the port of discharge; replacement liner.
Liming Cone Crusher Price:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy cone crusher manufacturer capable of producing all types of cone crusher, good quality and reasonable prices. Liming Heavy Industry production of cone crusher is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized cone crusher is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of cone crusher price, please contact us directly. We aim to provide you with the best cone crusher and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
