Fully Automatic Powder Making Machine
Author:liming Post Date:2012-9-25
Powder Making Machine:
Fully Automatic Powder Making Machine
Powder Making Machine is widely used in the fields of metallurgy, building materials, chemical, mining minerals such as grinding materials processing. According to the fineness of the grinding fineness of materials and discharging materials, Powder Making Machine can be divided into Raymond Powder Making Machine pitching Powder Making Machine, high pressure hanging roller Powder Making Machine, the high pressure Micropowder Powder Making Machine, Straight Centrifugal Powder Making Machine, overpressure trapezoid Powder Making Machine, ring medium speed Powder Making Machine, Powder Making Machine type.

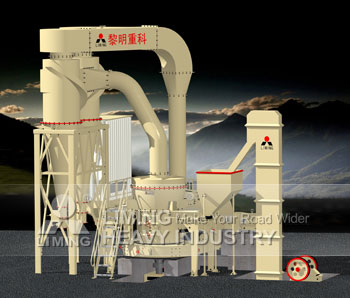

The following is an example T130 Powder Making Machine:
Usage of Powder Making Machine:
The machine is mainly applied in metallurgy, building materials, chemical, mining and minerals such as grinding materials processing, grinding feldspar, calcite, talc, barite, fluorite, rare earth, marble, ceramics, bauxite, manganese, iron ore, copper, rock phosphate, iron oxide red, slag, slag, activated carbon, dolomite, granite, iron oxide yellow, bean cake, fertilizer, compound fertilizer, fly ash, bituminous coal, coking coal, lignite, Ling U.S. sand, gold, red mud, clay, kaolin, coke, coal gangue, porcelain clay, kyanite, fluorspar, bentonite, medical stone rhyolite, muddy green rock, leaf wax rock, shale, purple rock, Diego rock, basalt, gypsum, graphite, insulation materials, humidity below 6% non-flammable, non-explosive mineral materials processing.
Equipment Composition and Working Principle:
The composition of the equipment: T130X powder making machine mainly by the host, reducer, analysis, maintenance platform, blower, Bypass powder collector, electric control cabinet. Auxiliary jaw crusher, bucket elevator, electromagnetic vibrating feeder, storage silos.
How it works: a large bulk materials jaw crusher crushed to the desired particle size hoist material to the hopper, then by vibrating feeder evenly quantitative material continuously fed into the grinding chamber grinding, powder grinding powders, the wind machine air rising, grading analysis machine, in line with the fineness of the powder with the air flow through pipes into the bypass powder collector collected separately, the powder valve discharge shall be finished powder . Return air duct suction centrifugal induced draft fan airflow from the upper end of the bypass powder collector, the entire air flow system of the machine is negative pressure closed loop to ensure the environmental health of the production site.
The Features:
T130X ultrafine mill is my company mill expert on the basis of market research and statistical analysis of the use of the large number of domestic and foreign mill users with recommendations, based on the original patented product - TGM Super Pressure Trapezium Mill The innovative design of the new mill. The models in the inheritance and the optimization of the structural properties of the TGM Super Pressure Trapezium Mill, and formed their own unique characteristics:
1, the body and the base is completely soft connection, no rigid contact
Avoiding the grinding cavity vibrations to the body, analysis machine, to improve the accuracy of analysis.
2, the base made of high strength, anti-vibration crack ductile iron
Ductile iron having a vibration damping performance of the cast iron, the strength of steel, as well as a good impact resistance.
3, using the domestic imitation Germany Flanders reducer
Make full use of professional reducer manufacturers manufacturing advantage, improve machine stability. Reducer and motor V-belt transmission of power, is conducive to overload.
4, the host, the elastic sleeve pin coupling reducer
Avoid nylon Pin brittle now like to improve equipment reliability.
5, the analysis machine using high-density blades
The analysis machine using high-density blades can improve the fineness of the powder and production. Practice shows that in the case of the speed remains unchanged, increase the density of the blade can increase the fineness of the finished product. In other words, in the equivalent fineness case, the high density impeller comparable low density impeller speed is low, reduces the airflow resistance, increased yields.
Impeller turntable with a new structure, avoid "run meal" phenomenon.
6, analysis machine using VVVF
VVVF accurate than electromagnetic speed energy saving, speed control, process control, good mobility, high degree of automation.
7 bypass powder collector
Bypass powder collector with a dust isolation room, make the dust more gas into the cyclone through the bypass lower to reduce the chance of escaping dust from the air vents. General powder collector, bypass powder collector pressure loss, powder collector efficiency is high, particularly conducive to the collection of general powder collector micronized particles are difficult to collect.
8, Equipment layout with resistance program
Arranged to avoid two powder collector output with resistance, improve the efficiency of powder collector set powder to reduce the inner loop to improve mill output.
9, two powder collector spout and dust discharge port three on the same line layout
Powder collector, precipitator discharge port with a straight-line layout to facilitate the centralized collection of materials to reduce the amount of labor for easy packing.
10, set maintenance platform
Setting maintenance platform, so the mill maintenance more convenient and safe.
Fully Automatic Powder Making Machine:
Fully Automatic Powder Making Machine is ordinary Powder Making Machine based on increased automation of electronic control and out equipment, automated ground into feed production, to ensure the smooth development of production and human cost. Fully Automatic Powder Making Machine and integrated mill production line trends and the main trend of the future development of Powder Making Machine.
Liming Fully Automatic Powder Making Machine:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We can produce various types of Fully Automatic Powder Making Machine and excellent quality, at an affordable price. If you need Fully Automatic Powder Making Machine and its related machinery and equipment, or would like to know more about the crusher and mill production information, please contact with our online staff. We will provide more information and better services.
