Manual Impactor Parker Machine
Author:liming Post Date:2013-10-31

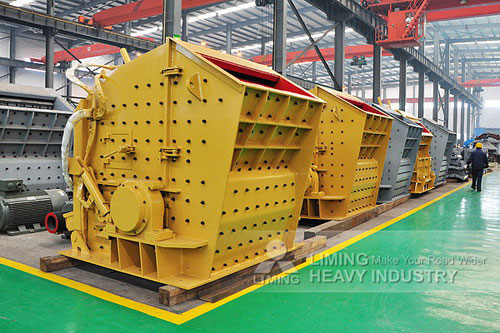

Manual Impactor Parker Machine
Manual Impactor Parker Machine Introduction:
Crusher broken material impact principle theoretical design study a crusher, it is actually developed from hammer crusher based on a new and efficient crusher, manual impactor parker machine can be usedcrushing limestone, asbestos ore, coal, quartz sand, calcium carbide, dolomite, pyrite and other materials. Can be used to rough broken, broken, broken bits can also be used.
Especially for high-grade highways following the non-slip surface layer of asphalt concrete fewer graded aggregate requirements of basalt, andesite and other hard materials processing power requirements 100t / h or more, by Liming Heavy production of PF series manual impactor parker machine discharge size and processing power are more able to adapt to the needs.
Manual impactor parker machine impact crushed ore crushing equipment. For the application of mechanical energy, the use of the impact energy the crusher crushing principle, superior extrusion crushing principle better than to the static pressure of the crusher.
Jaw crusher basically to squeeze the crushing action principle based crusher, manual impactor parker machine impact "freedom" crushing principle of crushed ore. It belongs to the energetic crusher.
Manual Impactor Parker Machine Characters:
High crushing ratio: the crushing ratio of manual impactor parker machine is about 30-40,even the max can be 150.While the max ratio of other crushers is less than 10.
High crushing efficiency, low energy consumption: for impact strength of normal stuff is far lower than compressive strength,at the same time, when stuff is impacted by high-speed hammer and impact plate,stuff is crushed firstly along the joint interface and weak&vulnerable organization.Therefore its crushing efficency is high and electric energy consumption is low.
Homogeneous final product size,less excessive comminution.In the crushing process, larger stuff is crushed to a great extent, while smaller one is not crushed under some circumstances,so there is homogeneous final product size and less excessive comminution.
Selectively crushed. In the impact crushing process,useful minerals and gangue are firstly crushed along the joint interface in order to facilitate the separation of useful minerals,especially for coarse crushing of useful minerals, which is more remarkable.
Great adaptability. manual impactor parker machine can be used to process brittle stone,fibrous stone and medium hard stone,particularly suitable for brittle stone such as limestone,so it is proper to use manual impactor parker machine in cement and stone industry. Small size, light weight, simple structure, easy maintenance.
For the above advantages,manual impactor parker machine is widely used all over the world.However if to process hard stone,the hammer and impact plate will be badly worn. In addition,manual impactor parker machine is a crushing equipment making use of high-speed rotation and impact,so it has high requiremnts for precision of mechanical parts, and also for static balance and dynamic balance in order to extend the service life.
Manual Impactor Parker Machine Accessories:
The Crusher Parts strict implementation of the heat treatment process, the use of high strength wear parts, key components Torrington bearings and other countries to export exemption product, device one-time investment, and effective.
Manual impactor parker machine counterattack board cast in ZGMn13-2 material. Casting after pouring water toughening treatment. Water toughening treatment after casting With high tensile strength, toughness, stone and non-magnetic. Makes the tooth plate more durable. Use of the process by the surface hardening, the deformation of the severe shock and strong pressure, and martensite is formed, thereby forming a high abrasion resistant surface layer, while the inner maintaining excellent toughness even wear to the thin, can also be withstand greater shock load.
Welded rotor body, spindle and rotor body taper sleeve keyless coupling, disassembly, easy to replace, with overload protection role.
Board hammer is a core component of the heat treatment process using special materials processing, both to ensure wear-resistant, and guaranteed not to break the life of ZGMn13 3-5 times the board hammer symmetrical production, can turn around and flip use, material utilization 50 % -60%, another plate hammer wear blocks easily and quickly fixed, embedded into the rotor body, the operation of automatic centering, installation, replacement.
Manual Impactor Parker Machine Common Maintenance:
Crusher is a fast speed, the inertia of the equipment, do the normal operation and maintenance work is extremely important for the long-term safe operation of the equipment.
Before driving to carefully check the equipment, such as fasteners are not loose and easy to wear pieces need to be replaced, the lubrication and cooling system is good;
When driving by the broken system boot sequence, first start dusting equipment, and then open the transportation equipment, and then the crusher and feeder. First empty running, confirmed that no abnormalities before feed production;
Parking is to be carried out in accordance with the order of the production process, with the car in reverse order. We must first stop the feeder, the material emptied until the crusher to shut down the main motor and the conveyor system;
Feeding should be uniform, to prevent more than the specified blocks degree materials and metal debris feeding;
Equipment operation process should be careful to check the work of the lubrication system regularly add or replace the lubricant. Rotor bearing temperature should be below 60°, the maximum does not exceed 70 °;
When the product particle size is too large, you should be down to check the impact plate for wear, or to adjust the pads and the gap between the counter plate;
Good equipment sealed and workshop dust collection.
Liming Manual Impactor Parker Machine:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy manual impactor parker machine manufacturer capable of producing all types of manual impactor parker machine, good quality and reasonable prices. Liming Heavy Industry production of manual impactor parker machine is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized manual impactor parker machine is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of manual impactor parker machine, please contact us directly. We aim to provide you with the best manual impactor parker machine and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
