Mp1000 Crusher Usada
Author:liming Post Date:2013-6-27
Mp1000 Crusher Usada
Mp1000 Crusher Introduction:

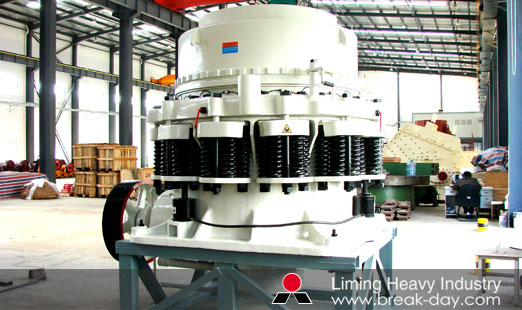

CS series cone crusher is my company in the introduction, the basis of absorbing foreign technology, based on customer demand, based on the design and development of laminated crushing principle and the concept of multi-break less grinding set high wobble, optimization of cavity-type and reasonable stroke inone of the modern high-performance crusher.
CS series cone crusher can be widely used in metal and nonmetal mines, cement plants, construction, sand and metallurgical industries. Apply to iron ore and non-ferrous metal ore, granite, limestone, quartzite, sandstone, cobblestone.
Working Principle:
Spring cone crusher main rack, pulley, the horizontal axis, eccentric sleeve on the broken wall (fixed cone), under the crushing wall (dynamic cone), fluid couplings, lubrication system, control system, such as a few parts.
The its dynamic cone fixed in a hanging vertical axis, the vertical axis is placed on the horizontal axis of the eccentric sleeve. Work, the motor driven pulley or coupling rotation, horizontal axis, the eccentric sleeve, forcing the moving cone hanging vertical axis rotary pendulum movement along the inner surface of the fixed cone. Moving cone to move closer to the fixed cone section material squeezed by moving cone, impact and bending and breaking, the formation of the crushing chamber; deviation from the fixed cone moving cone material has been broken under its own weight from the conical bottom unloading. Crusher by the continuity of the work to achieve sustained stone crushing.
The the support sleeves crusher frame body junction pressed by spring, not fall into the piece of metal crusher broken objects or due to some reason, the machine is overloaded, the spring that is deformed by compression crusher row ore mouth increases foreign body from the crushing chamber discharge, to achieve insurance, preventing damage to the machine. Is expelled after the action of the spring, Pai mine mouth automatically reset the machine back to normal work.
Mp1000 Crusher Performance Characteristics:
Spring cone crusher is used to the material layered select broken. The crushing chamber filled feed, play after a full range of extruded, cut and rub broken, since broken the purpose of the material to withstand the crushing chamber so broken parietal avoid direct contact with, and effectively prevent the liner mutual wear avoid materials contaminated metal pollutants, so that the vulnerability of the aircraft to reduce the wear and tear of consumable parts effectively extend the service life of the wear parts, crushing ratio is more than double that of other similar devices.
Static pressure crushing, crushing ratio increased, arbitrary strong product particle size, size can be adjusted. Has a certain relationship between the crushing force and eccentric static torque and speed of the aircraft. Adjusting the gap between the crushing chamber can easily adjust the desired crushing ratio.
Mp1000 Crusher Fault Repair:
1, the oil temperature is too high. Reason: bad oil quality; insufficient oil; bearing damage. Remedy: change the oil, or fuel, or replace the bearings.
2, low oil pressure after oil pump start or the indicator no oil flow. Cause: low oil temperature; the tubing clogged or the oil pump is not working properly. Elimination of the way: the heat to raise the oil temperature; repair pipelines or oil pump.
3, hydraulic oil temperature rise. Cause: Tubing or blockage of the oil groove, the safety valve malfunction. Eliminate way: down to check repairs.
4, contains a large number of fine mud and impurities in the oil. Reason: sealed dust-proof device failure; plumbing blockage or leak caused by lack of water. Eliminate way: stop re-sealed or cleaning maintenance, replacement oil.
5, Crusher strong vibration, moving cone suddenly spin faster. Reason: poor lubrication of the spindle bushing package tight; moving cone sink or spherical thrust bearing damage; tapered bushing Shangcuan activities resulting in the lack of spindle clearance. Elimination of the way: the reasons to replace damaged pieces, to overhaul oil pump and pipeline.
6, Crushing or idling produces an audible splitting sound. Reason: liner relaxation; the moving cone or fixed cone lining round impact. Eliminate way: down to check the screw fastening the zinc coating off. Damaged screws or earrings, you need to remove the adjustment ring replacement screws and earrings; zinc layer off re-cast zinc layer; Check the liner ovality necessary machining.
7, the drive shaft rotary uneven, resulting in a strong percussion pulley rotation, moving cone does not move. Cause: gear badly worn or damaged; join key damage; spindle break. Elimination of the way: the downtime to replace the gear, and the meshing clearance to meet the requirements; replace the join key; replacement spindle to strengthen the work of the removal of iron.
8, Row of ore particle size increases. Causes: severe liner wear. The way to eliminate: Adjust the port of discharge, reduce the size of the port of discharge; replacement liner.
Liming Mp1000 Crusher Usada:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy mp1000 crusher manufacturer capable of producing all types of mp1000 crusher, good quality and reasonable prices. Liming Heavy Industry production of mp1000 crusher is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized mp1000 crusher is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of mp1000 crusher Usada, please contact us directly. We aim to provide you with the best mp1000 crusher and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
