Price of A 26 Cone Crusher
Author:liming Post Date:2012-12-12
Price of a 26 Cone Crusher
Cone Crusher Introduction.
Cone crusher began in 1878, the United States invented the gyratory crusher with continuous crushing action, mainly used for compressive strength does not exceed a 300Mpa the ores and rocks (iron ore, limestone, copper ore, quartz, granite,sandstone, etc.) the breaking or crushing. The type crusher material layer crushed theory ", with hydrostatic broken, broken and high production efficiency, easy adjustment, economic energy and operating costs low, widely used in metallurgy, building materials, road construction, stone production of silicate industrial.
26 Cone Crusher Type.
Spring cone crusher of spring cone crusher, coarse crushing the chopped spring cone crusher and crushing spring cone crushers three.
Thick broken spring cone crusher also known as cycles crusher; broken spring cone crusher for the standard cone crusher; crushing cone crusher is also called a short head cone crusher or "circular grinding.
Spring cone crusher bodies made made of the three types of substantially identical, the only difference lies in the different shape of the dynamic cone and the fixed cone, so that a cross-sectional shape of the crushing chamber, the feed and out-feed particle size is not the same.
26 Cone Crusher Working Principle.
Spring cone crusher main rack, pulley, the horizontal axis, eccentric sleeve on the broken wall (fixed cone), under the crushing wall (dynamic cone), fluid couplings, lubrication system, control system, such as a few parts.
The its dynamic cone fixed in a hanging vertical axis, the vertical axis is placed on the horizontal axis of the eccentric sleeve. Work, the motor driven pulley or coupling rotation, horizontal axis, the eccentric sleeve, forcing the moving cone hanging vertical axis rotary pendulum movement along the inner surface of the fixed cone. Moving cone to move closer to the fixed cone section material squeezed by moving cone, impact and bending and breaking, the formation of the crushing chamber; deviation from the fixed cone moving cone material has been broken under its own weight from the conical bottom unloading. Crusher by the continuity of the work to achieve sustained stone crushing.
The the support sleeves crusher frame body junction pressed by spring, not fall into the piece of metal crusher broken objects or due to some reason, the machine is overloaded, the spring that is deformed by compression crusher row ore mouth increases foreign body from the crushing chamber discharge, to achieve insurance, preventing damage to the machine. Is expelled after the action of the spring, Pai mine mouth automatically reset the machine back to normal work.
26 Cone Crusher Main Structure.

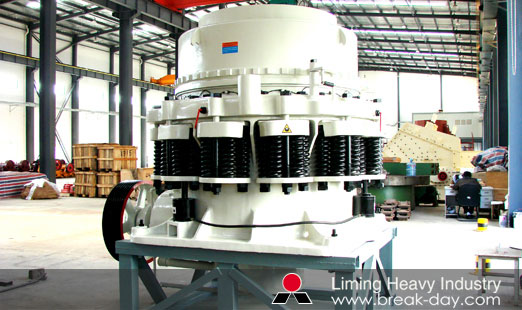

CS series spring cone crusher mainly consists of frame, fixed cone assembly, moving cone assembly, spring mechanism, the Ministry of bowl-shaped shaft frame and drive components. Auxiliary part of the electrical system, lubrication system, and hydraulic clean cavity system.
Fixed cone assembly is mainly composed of adjustment sleeve, rolling acetabular wall, mainly by the spindle of the moving cone assembly, dynamic cone crushing wall composed, transmission part is mainly composed of large pulley, drive shaft, a small bevel gear, a large bevel gear and other components.
Liming Price of a 26 Cone Crusher:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy 26 cone crusher manufacturer capable of producing all types of 26 cone crusher, good quality and reasonable prices. Liming Heavy Industry production of 26 cone crusher is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized 26 cone crusher is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of Price of a 26 cone crusher, please contact us directly. We aim to provide you with the best 26 cone crusher and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
