Single Impeller Impact Breaker Model 5348
Author:liming Post Date:2013-2-23

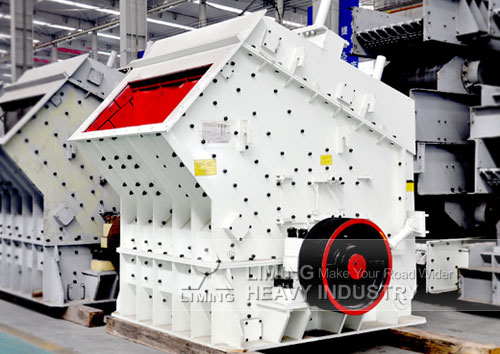

Single Impeller Impact Breaker Model 5348
Single Impeller Impact Breaker Performance Characteristics:
1, the feed opening large, high crushing chamber to adapt to high material hardness, block degree, the product powder less;
2, counterattack plate and plate hammer clearance can be easily adjusted, effective control of feed size, particle shape;
3, the compact structure, the machine rigidity, the rotor having a large moment of inertia;
4, high chrome plate hammer, impact, abrasion resistance, impact;
5, keyless connection, easy maintenance, economical and reliable;
6, crushing function full, high productivity, mechanical wear, comprehensive benefits.
Single Impeller Impact Breaker Working Principle:
Ore into the crusher, received the impact of the high-speed rotary blow plate, ore along the bedding plane, joint planes selective fragmentation. The ore after impact, enormous energy, and high speed along the tangent direction of the board of the blow thrown to the first-class counter plate after the impact of the counter plate, the ore again received crushed, then from the first a counterattack plate block of material returned, they suffered against board re-impact, resulting in the "interlocking" type of ore crusher crushing effect. When the ore journeys in between the pads and the counter plate, the addition to the fight against the impact plate and counter plate, there ore between several colliding role. This process repeated until the crushed material particle size is smaller than the gap between the pads and the counter plate, and discharged from the lower part of the single impeller impact breaker.
Single Impeller Impact Breaker Accessories:
The Crusher Parts strict implementation of the heat treatment process, the use of high strength wear parts, key components Torrington bearings and other countries to export exemption product, device one-time investment, and effective.
Single impeller impact breaker counterattack board cast in ZGMn13-2 material. Casting after pouring water toughening treatment. Water toughening treatment after casting With high tensile strength, toughness, stone and non-magnetic. Makes the tooth plate more durable. Use of the process by the surface hardening, the deformation of the severe shock and strong pressure, and martensite is formed, thereby forming a high abrasion resistant surface layer, while the inner maintaining excellent toughness even wear to the thin, can also be withstand greater shock load.
Welded rotor body, spindle and rotor body taper sleeve keyless coupling, disassembly, easy to replace, with overload protection role.
Board hammer is a core component of the heat treatment process using special materials processing, both to ensure wear-resistant, and guaranteed not to break the life of ZGMn13 3-5 times the board hammer symmetrical production, can turn around and flip use, material utilization 50 % -60%, another plate hammer wear blocks easily and quickly fixed, embedded into the rotor body, the operation of automatic centering, installation, replacement.
Liming Single Impeller Impact Breaker Model 5348:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy single impeller impact breaker manufacturer capable of producing all types of single impeller impact breaker, good quality and reasonable prices. Liming Heavy Industry production of single impeller impact breaker is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized single impeller impact breaker is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of single impeller impact breaker model 5348, please contact us directly. We aim to provide you with the best single impeller impact breaker and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
