South African Suppliers For Cs Cone Crusher
Author:liming Post Date:2013-2-2
Cs Cone Crusher Working Principle:

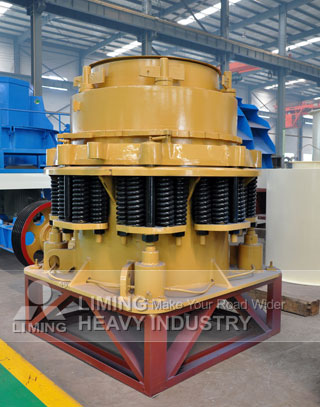

South African Suppliers for Cs Cone Crusher
Work, by the motor through V-belts, pulleys, drive shaft, small bevel gear, a large bevel gear driven eccentric sleeve rotation, crushing cone axis is forced to move to the next in the eccentric sleeve rotation swing, making the surface of the crushing wall sometimesclose to and sometimes leave the rolling acetabular wall surface, so that a ring of material in the fixed cone and movable cone crushing cavity constantly under attack, squeezed and bent and broken. After repeated squeezing, shock and bending, the material crushing to the required particle size, the lower part of the discharge.
Main Structure:
Cs cone crusher mainly consists of frame, fixed cone assembly, moving cone assembly, spring mechanism, the Ministry of bowl-shaped shaft frame and drive components. Auxiliary part of the electrical system, lubrication system, and hydraulic clean cavity system.
Fixed cone assembly is mainly composed of adjustment sleeve, rolling acetabular wall, mainly by the spindle of the moving cone assembly, dynamic cone crushing wall composed, transmission part is mainly composed of large pulley, drive shaft, a small bevel gear, a large bevel gear and other components.
Cs Cone Crusher Features:
1, high performance. Cavity optimization design combined with reasonable speed and stroke, so that the models in the case of the same dynamic cone diameter acting up. Therefore, compared with the same type cone crusher with higher performance and production capacity.
2, product size composition. Laminated crushing principle, the product cube proportion significantly improved, reduce flakiness stone, more uniform stone size.
3, good stability. When iron and other non-broken material into the machine, the over iron protection device will automatically release, and then automatically reset. Over iron protection has fixed discharge opening to the return point, miscellaneous iron through the crushing chamber to quickly restore the original discharge opening.
4, clear cavity convenient. Crusher downtime in the load condition, the hydraulic cavity clearing system may quickly clean up the crushing chamber, greatly reducing downtime.
5, high reliability. Large diameter spindle, heavy-duty main frame and independent thin oil lubrication system, automatic control system to ensure that the equipment is rugged, reliable operation.
6, easy maintenance and easy operation: All parts are removable from the top or side, so that fixed cone and movable cone assembly can be easy to split out. Bronze plain bearings in high-impact vibration to be able to maintain the excellent performance of the bearing crushing environment, and is more economical than the rolling bearing, maintenance is more convenient.
7, the production cost is low. Due to the large capacity, high reliability, easy maintenance, greatly reducing the cost of production.
8, a wide range of applications. CS series cone crusher crusher is to play the greatest performance in order to apply to all kinds of crushing process: from special coarse crushing to fine crushing crusher from fixed to mobile crusher station. CS series cone crusher from special coarse crushing to fine crushing various cavity to choose from, and therefore under the crushing process to choose the crushing chamber type.
9 split lubrication. Independent thin oil lubrication system, multi-point control to ensure that the double protection of models bearing lubrication, and can achieve the whole automatic safety protection.
Cs Cone Crusher in China:
China is a big country, and could produce cs cone crusher every year, a large number of quality product is produced and sold around the world. The quality of cs cone crusher produced in China is guaranteed, and the price is relatively cheap. It is the best choice to buy cs cone crusher in China. But choose to buy cs cone crusher can not be blindly freeloaders, they should have chosen a large formal cs cone crusher manufacturer. So to protect the interests of buyers, and can provide the necessary technical support and maintenance services.
Liming South African Suppliers for Cs Cone Crusher:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy cs cone crusher manufacturer capable of producing all types of cs cone crusher, good quality and reasonable prices. Liming Heavy Industry production of cs cone crusher is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized cs cone crusher is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of South African suppliers for cs cone crusher, please contact us directly. We aim to provide you with the best cs cone crusher and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
