Stone Crushing Machine in China
Author:liming Post Date:2013-1-11
Stone Crushing Machine in China
Stone Crushing Machine Introduction:

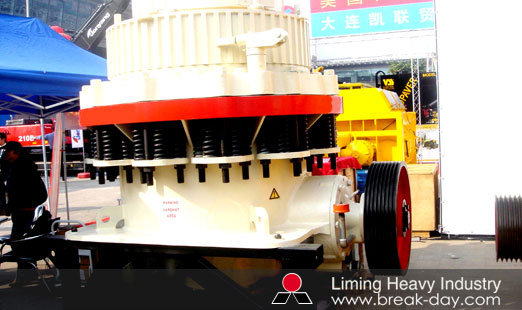

CS series cone crusher is my company in the introduction, the basis of absorbing foreign technology, based on customer demand, based on the design and development of laminated crushing principle and the concept of multi-break less grinding set high wobble, optimization of cavity-type and reasonable stroke inone of the modern high-performance crusher.
CS series cone crusher can be widely used in metal and nonmetal mines, cement plants, construction, sand and metallurgical industries. Apply to iron ore and non-ferrous metal ore, granite, limestone, quartzite, sandstone, cobblestone.
Stone Crushing Machine Working Principle:
Work, by the motor through V-belts, pulleys, drive shaft, small bevel gear, a large bevel gear driven eccentric sleeve rotation, crushing cone axis is forced to move to the next in the eccentric sleeve rotation swing, making the surface of the crushing wall sometimesclose to and sometimes leave the rolling acetabular wall surface, so that a ring of material in the fixed cone and movable cone crushing cavity constantly under attack, squeezed and bent and broken. After repeated squeezing, shock and bending, the material crushing to the required particle size, the lower part of the discharge.
Stone Crushing Machine Fault Repair:
1, the oil temperature is too high. Reason: bad oil quality; insufficient oil; bearing damage. Remedy: change the oil, or fuel, or replace the bearings.
2, low oil pressure after oil pump start or the indicator no oil flow. Cause: low oil temperature; the tubing clogged or the oil pump is not working properly. Elimination of the way: the heat to raise the oil temperature; repair pipelines or oil pump.
3, hydraulic oil temperature rise. Cause: Tubing or blockage of the oil groove, the safety valve malfunction. Eliminate way: down to check repairs.
4, contains a large number of fine mud and impurities in the oil. Reason: sealed dust-proof device failure; plumbing blockage or leak caused by lack of water. Eliminate way: stop re-sealed or cleaning maintenance, replacement oil.
5, Crusher strong vibration, moving cone suddenly spin faster. Reason: poor lubrication of the spindle bushing package tight; moving cone sink or spherical thrust bearing damage; tapered bushing Shangcuan activities resulting in the lack of spindle clearance. Elimination of the way: the reasons to replace damaged pieces, to overhaul oil pump and pipeline.
6, Crushing or idling produces an audible splitting sound. Reason: liner relaxation; the moving cone or fixed cone lining round impact. Eliminate way: down to check the screw fastening the zinc coating off. Damaged screws or earrings, you need to remove the adjustment ring replacement screws and earrings; zinc layer off re-cast zinc layer; Check the liner ovality necessary machining.
7, the drive shaft rotary uneven, resulting in a strong percussion pulley rotation, moving cone does not move. Cause: gear badly worn or damaged; join key damage; spindle break. Elimination of the way: the downtime to replace the gear, and the meshing clearance to meet the requirements; replace the join key; replacement spindle to strengthen the work of the removal of iron.
8, Row of ore particle size increases. Causes: severe liner wear. The way to eliminate: Adjust the port of discharge, reduce the size of the port of discharge; replacement liner.
Stone Crushing Machine in China:
China is a big country, and could produce stone crushing machine every year, a large number of quality product is produced and sold around the world. The quality of stone crushing machine produced in China is guaranteed, and the price is relatively cheap. It is the best choice to buy stone crushing machine in China. But choose to buy stone crushing machine can not be blindly freeloaders, they should have chosen a large formal stone crushing machine manufacturer. So to protect the interests of buyers, and can provide the necessary technical support and maintenance services.
Liming Stone Crushing Machine in China:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy stone crushing machine manufacturer capable of producing all types of stone crushing machine, good quality and reasonable prices. Liming Heavy Industry production of stone crushing machine is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized stone crushing machine is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of stone crushing machine in China, please contact us directly. We aim to provide you with the best stone crushing machine and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
