42 Inch Rock Griending Cone
Author:liming Post Date:2013-11-5

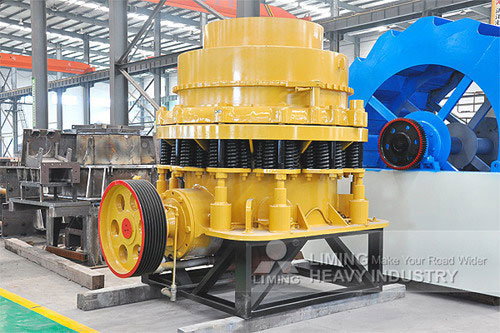

42 Inch Rock Griending Cone
42 Inch Rock Griending Cone Introduction:
Spring cone crusher began in 1878, the United States invented the gyratory crusher with continuous crushing action, mainly used for compressive strength does not exceed a 300Mpa the ores and rocks (iron ore, limestone, copper ore, quartz, granite,sandstone, etc.) the breaking or crushing. The type crusher material layer crushed theory ", with hydrostatic broken, broken and high production efficiency, easy adjustment, economic energy and operating costs low, widely used in metallurgy, building materials, road construction, stone production of silicate industrial.
Main Structure:
42 inch rock griending cone mainly consists of frame, fixed cone assembly, moving cone assembly, spring mechanism, the Ministry of bowl-shaped shaft frame and drive components. Auxiliary part of the electrical system, lubrication system, and hydraulic clean cavity system.
Fixed cone assembly is mainly composed of adjustment sleeve, rolling acetabular wall, mainly by the spindle of the moving cone assembly, dynamic cone crushing wall composed, transmission part is mainly composed of large pulley, drive shaft, a small bevel gear, a large bevel gear and other components.
Working Principle:
Spring cone crusher main rack, pulley, the horizontal axis, eccentric sleeve on the broken wall (fixed cone), under the crushing wall (dynamic cone), fluid couplings, lubrication system, control system, such as a few parts.
The its dynamic cone fixed in a hanging vertical axis, the vertical axis is placed on the horizontal axis of the eccentric sleeve. Work, the motor driven pulley or coupling rotation, horizontal axis, the eccentric sleeve, forcing the moving cone hanging vertical axis rotary pendulum movement along the inner surface of the fixed cone. Moving cone to move closer to the fixed cone section material squeezed by moving cone, impact and bending and breaking, the formation of the crushing chamber; deviation from the fixed cone moving cone material has been broken under its own weight from the conical bottom unloading. Crusher by the continuity of the work to achieve sustained stone crushing.
The the support sleeves crusher frame body junction pressed by spring, not fall into the piece of metal crusher broken objects or due to some reason, the machine is overloaded, the spring that is deformed by compression crusher row ore mouth increases foreign body from the crushing chamber discharge, to achieve insurance, preventing damage to the machine. Is expelled after the action of the spring, Pai mine mouth automatically reset the machine back to normal work.
42 Inch Rock Griending Cone Features:
1, high performance. Cavity optimization design combined with reasonable speed and stroke, so that the models in the case of the same dynamic cone diameter acting up. Therefore, compared with the same type cone crusher with higher performance and production capacity.
2, product size composition. Laminated crushing principle, the product cube proportion significantly improved, reduce flakiness stone, more uniform stone size.
3, good stability. When iron and other non-broken material into the machine, the over iron protection device will automatically release, and then automatically reset. Over iron protection has fixed discharge opening to the return point, miscellaneous iron through the crushing chamber to quickly restore the original discharge opening.
4, clear cavity convenient. Crusher downtime in the load condition, the hydraulic cavity clearing system may quickly clean up the crushing chamber, greatly reducing downtime.
5, high reliability. Large diameter spindle, heavy-duty main frame and independent thin oil lubrication system, automatic control system to ensure that the equipment is rugged, reliable operation.
6, easy maintenance and easy operation: All parts are removable from the top or side, so that fixed cone and movable cone assembly can be easy to split out. Bronze plain bearings in high-impact vibration to be able to maintain the excellent performance of the bearing crushing environment, and is more economical than the rolling bearing, maintenance is more convenient.
7, the production cost is low. Due to the large capacity, high reliability, easy maintenance, greatly reducing the cost of production.
8, a wide range of applications. CS series cone crusher crusher is to play the greatest performance in order to apply to all kinds of crushing process: from special coarse crushing to fine crushing crusher from fixed to mobile crusher station. CS series cone crusher from special coarse crushing to fine crushing various cavity to choose from, and therefore under the crushing process to choose the crushing chamber type.
9 split lubrication. Independent thin oil lubrication system, multi-point control to ensure that the double protection of models bearing lubrication, and can achieve the whole automatic safety protection.
Liming 42 Inch Rock Griending Cone:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy 42 inch rock griending cone manufacturer capable of producing all types of 42 inch rock griending cone, good quality and reasonable prices. Liming Heavy Industry production of 42 inch rock griending cone is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized 42 inch rock griending cone is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of 42 inch rock griending cone, please contact us directly. We aim to provide you with the best 42 inch rock griending cone and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
