Cone Crusher 3' CS75
Author:liming Post Date:2013-4-12
Cone Crusher 3' Cs75 Introduction:

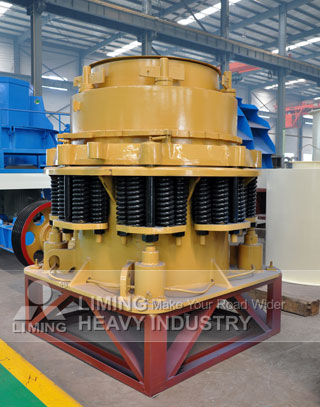

Cone Crusher 3' CS75
Cone crusher 3' cs75 is in the introduction, the basis of absorbing foreign technology, based on customer demand, based on a set of laminated crushing principle and multi-break less grinding conceptual design developed high swing frequency, optimized cavity shape and reasonable stroke in one modern highperformance crusher. CS series spring cone crusher can be widely used in metal and nonmetal mines, cement plants, construction, sand and metallurgical industries. Apply to iron ore and non-ferrous metal ore, granite, limestone, quartzite, sandstone, cobblestone.
Cone Crusher 3' Cs75 Features:
1, high performance. Cavity optimization design combined with reasonable speed and stroke, so that the models in the case of the same dynamic cone diameter acting up. Therefore, compared with the same type cone crusher with higher performance and production capacity.
2, product size composition. Laminated crushing principle, the product cube proportion significantly improved, reduce flakiness stone, more uniform stone size.
3, good stability. When iron and other non-broken material into the machine, the over iron protection device will automatically release, and then automatically reset. Over iron protection has fixed discharge opening to the return point, miscellaneous iron through the crushing chamber to quickly restore the original discharge opening.
4, clear cavity convenient. Crusher downtime in the load condition, the hydraulic cavity clearing system may quickly clean up the crushing chamber, greatly reducing downtime.
5, high reliability. Large diameter spindle, heavy-duty main frame and independent thin oil lubrication system, automatic control system to ensure that the equipment is rugged, reliable operation.
6, easy maintenance and easy operation: All parts are removable from the top or side, so that fixed cone and movable cone assembly can be easy to split out. Bronze plain bearings in high-impact vibration to be able to maintain the excellent performance of the bearing crushing environment, and is more economical than the rolling bearing, maintenance is more convenient.
7, the production cost is low. Due to the large capacity, high reliability, easy maintenance, greatly reducing the cost of production.
8, a wide range of applications. CS series cone crusher crusher is to play the greatest performance in order to apply to all kinds of crushing process: from special coarse crushing to fine crushing crusher from fixed to mobile crusher station. CS series cone crusher from special coarse crushing to fine crushing various cavity to choose from, and therefore under the crushing process to choose the crushing chamber type.
9 split lubrication. Independent thin oil lubrication system, multi-point control to ensure that the double protection of models bearing lubrication, and can achieve the whole automatic safety protection.
Cone Crusher 3' Cs75 Main Structure:
Cone crusher 3' cs75 mainly consists of frame, fixed cone assembly, moving cone assembly, spring mechanism, the Ministry of bowl-shaped shaft frame and drive components. Auxiliary part of the electrical system, lubrication system, and hydraulic clean cavity system.
Fixed cone assembly is mainly composed of adjustment sleeve, rolling acetabular wall, mainly by the spindle of the moving cone assembly, dynamic cone crushing wall composed, transmission part is mainly composed of large pulley, drive shaft, a small bevel gear, a large bevel gear and other components.
Cone Crusher 3' Cs75 Working Principle:
Work, by the motor through V-belts, pulleys, drive shaft, small bevel gear, a large bevel gear driven eccentric sleeve rotation, crushing cone axis is forced to move to the next in the eccentric sleeve rotation swing, making the surface of the crushing wall sometimesclose to and sometimes leave the rolling acetabular wall surface, so that a ring of material in the fixed cone and movable cone crushing cavity constantly under attack, squeezed and bent and broken. After repeated squeezing, shock and bending, the material crushing to the required particle size, the lower part of the discharge.
Liming Cone Crusher 3' CS75:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy cone crusher 3' CS75 manufacturer capable of producing all types of cone crusher 3' CS75, good quality and reasonable prices. Liming Heavy Industry production of cone crusher 3' CS75 is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized cone crusher 3' CS75 is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of cone crusher 3' CS75, please contact us directly. We aim to provide you with the best cone crusher 3' CS75 and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
