Jaw Crusher Animation Show

At present jaw crusher is one of the most widely used type of crusher, with broken than large, the product particles form uniform, simple structure, easy maintenance advantages. Jaw crusher, manufacture by Liming Heavy Industry, is to give full play to the advantage of the characteristics of the crusher, has improved the structure of perfect quality can fully cover up the entire operation of the crusher. From the specification, the jaw crusher is divided into coarse and fine broken, broken to achieve the highest compressive strength 320Mpa materials.

Operating environment:

From the jaw crusher animation, we can see the huge stones broken into small stones, the first crusher is often referred to as the "master" crusher. The longest history, the most solid crusher jaw crusher. Jaw crusher feeding the material from the top of the entrance into the crushing chamber containing the jaw teeth. Jaw tooth material top to the wall with great force, will be broken into smaller stones. Support the movement of the jaw teeth is an eccentric axis, this axis runs through the body architecture. Eccentric exercise is usually fixed at both ends of the shaft flywheel. Flywheel and eccentric support bearings are often used spherical roller bearings, bearing the working environment is extremely harsh. Bearings must withstand large impact loads, abrasive sewage and high temperature. Although this work environment is extremely harsh, jaw crusher still very to work reliably.

Jaw Crusher Structure:

From the crusher machine on the animated map, we observed that the structure of the jaw crusher main frame, eccentric shaft, pulley, flywheel, moving jaw, side guard plate, toggle plate, back seat of the bracket, adjust gap screw, reset spring, fixed The jaw plate and movable jaw plate and other components, which bracket also play a role in insurance.

Working principle

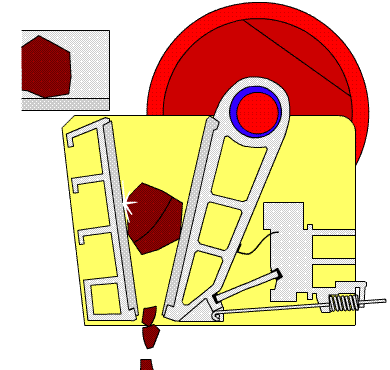

As jaw crusher animation drawing show for the moving extrusion type, motor-driven belt and pulley up and down movement of the movable jaw by the eccentric shaft, when the rise of the moving jaw toggle plate and moving jaw the angle between, thus promoting the movable jaw plate close to the fixed jaw plate, at the same time the material is squeezed, rubbing, grinding, and multiple broken; when moving jaw downstream angle between toggle plate and moving jaw, moving jaw plate will leave the fixed jaw plate lever action of the spring, the crushed material discharged from the crushing chamber under the mouth, and crushed With the continuous rotation of motor broken motor jaw for a cyclical and nesting, and mass production. Dawn Heavy production of jaw crusher, with a big crushing ratio, even granularity, simple structure, reliable operation, easy maintenance, operating costs and economic characteristics. Complete product specifications, is the first choice for primary crushing equipment.

Specific workflow can go to see the jaw crusher animation upward. If there are any questions, please contact us, we will give you the response as soon as possible.
