Jaw Crusher Double Toggle
Author:liming Post Date:2013-3-15

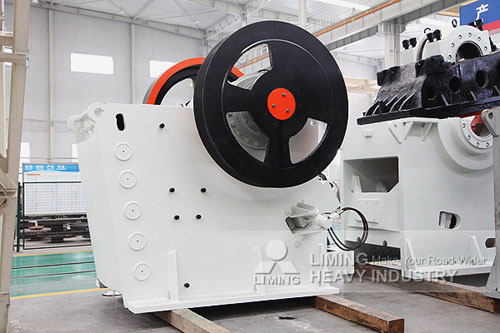

Jaw Crusher Double Toggle
Jaw Crusher Introduction:
This series of jaw crusher is mainly used for a variety of materials, not more than 320 MPa compressive strength broken, crushing operations, with a crushing ratio, high yield, uniform particle size, simple structure, reliable operation, easy maintenance,operating costs and economic characteristics. The crusher has been widely used in mining, metallurgy, building materials, road, railway, water conservancy and other departments.
Jaw Crusher Characteristics:
High ratio of crushing; Even final size; Simple structure; Reliable working condition; Easy maintenance; Low operating cost.
Jaw Crusher Species:
The jaw crusher common two ways: on the move type under acting. On the dynamic type jaw crusher constant width of the port of discharge, the work is often clogged, affecting the normal work, so now been eliminated. Under dynamic type jaw crusher concentrator. It is constituted by the following main components: a fixed jaw and the front wall of the rack, suspended on the shaft of the movable jaw, the eccentric shaft, the vertical rod, the toggle plate, the drive flywheel. Two jaw board the liner, with a spring lever, elbow board seat, adjust the block.
Jaw Crusher Working Principle:
The structure of the jaw crusher frame, eccentric shaft, big pulley, flywheel, moving jaw, side guard plate, toggle plate, toggle plate back seat, adjust gap screw, reset spring, fixed jaw plate and activities jaw, which brackets also play a role as insurance. The series jaw crusher way for music moving extrusion type, motor-driven belt and pulley, the up and down movement of the movable jaw by the eccentric shaft when the movable jaw rises, the angle between toggle plate and moving jaw becomes larger, thus promoting the movable jaw plate close to the fixed jaw plate, at the same time the material is squeezed, rubbing, grinding, such as multiple broken; when the movable jaw down, the angle between toggle plate and moving jaw smaller, movable jaw plate trolley leave spring fixed jaw plate, the crushed material is discharged from the crushing chamber mouth With the motor continuously rotating broken motor Hubei periodically crushed and nesting to achieve mass production.
Jaw Crusher in China:
China is a big country, and could produce jaw crusher every year, a large number of quality product is produced and sold around the world. The quality of jaw crusher produced in China is guaranteed, and the price is relatively cheap. It is the best choice to buy jaw crusher in China. But choose to buy jaw crusher can not be blindly freeloaders, they should have chosen a large formal jaw crusher manufacturer. So to protect the interests of buyers, and can provide the necessary technical support and maintenance services.
