Jaw Crusher For Marbel
Author:liming Post Date:2012-12-12

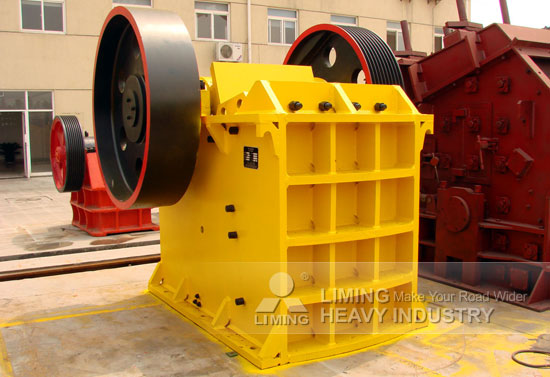

Jaw Crusher for Marbel
Jaw Crusher Introduction:
Jaw crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway, and stone industry.
Jaw Crusher Application:
Jaw crusher for cement, coal preparation, power generation and building materials, to adapt to the crushing of medium hardness and brittle materials, such as limestone, coal. The maximum compressive strength of not more than 1500kg/cm2.
Working Principle:
The main structure of the jaw crusher frame, eccentric shaft, big pulley, flywheel, side guard plate, toggle plate, toggle plate back seat, adjust gap screw, reset spring, fixed jaw plate and movable jaw plate.
Work when the motor drive belt and pulley, through the eccentric shaft to make the movable jaw up and down movement, when the movable jaw rises larger angle between toggle plate and moving jaw, thus promoting the movable jaw plate close to the fixed jaw plate at the same time the material pushed pressure, rubbing, grinding, such as multiple broken; when the movable jaw down, the angle between toggle plate and moving jaw smaller, movable jaw plate lever spring to leave the fixed jaw plate material has been crushed in the gravity next, after the spout of the lower portion of the jaw cavity free unloading. The jaw crusher is thus intermittent, crushing and unloading process in the jaw cavity alternately. With the motor continuously rotating crusher mobile jaw crushing and nesting periodicity, and mass production.
Jaw Crusher Performance:
Jaw crusher can be different sizes of raw materials, broken into small pieces of uniform particles, jaw crusher either supporting and beneficiation equipment, sand and gravel equipment can also be used alone. jaw crusher can produce the cornerstone of the road, railway ballast stone and construction sand and gravel aggregate. The jaw crusher divided into coarse crushing jaw crusher and crushing jaw crusher, which is commonly referred to as PE series jaw crusher and PEX series jaw crusher. jaw crusher production products, has crushing, product uniform particle size, simple structure, reliable work, easy maintenance, low operation cost characteristics.
Liming Jaw Crusher for Marbel:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy jaw crusher manufacturer capable of producing all types of jaw crusher, good quality and reasonable prices. Liming Heavy Industry production of jaw crusher is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized jaw crusher is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of jaw crusher for marbel, please contact us directly. We aim to provide you with the best jaw crusher and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
