Jaw Crushers Australia
Author:liming Post Date:2013-9-27

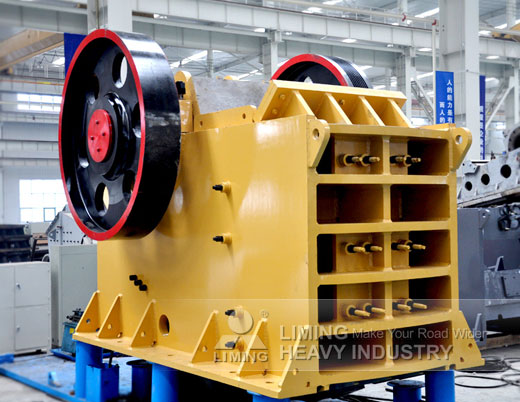

Jaw Crushers Australia
Jaw Crushers Introduction:
Jaw crushers is used to reduce the large material to small piece. jaw crushers can be used together with mine-selecting equipments and gravel processing equipments as well as used independently.
There are two typs of jaw crushers: coarse jaw crushers and fine jaw crushers.jaw crushers can be used to process roadbed stone, railway soil sediments and construction aggregate.
Jaw crushers features high crushing ratio, uniformly final product, simple structure, stable operation, easy maintenance and economical operating cost.
Jaw Crushers Performance Characteristics:
The company on the basis of years of design and production of mining crusher machinery, jaw crushers, the actual use of the recurring problems in the process, a series of improvements to the product, jaw crushers production company has a unique advantage:
1, crushing chamber depth and no dead zone, increased capacity and output feed.
2, crushing ratio, uniform particle size.
3, gasket discharge opening adjustment device, reliable and convenient adjustment range, and increase the flexibility of the device.
4, the lubrication system is safe and reliable, easy to replace parts, maintenance workload is small.
5, the structure is simple and reasonable, reliable operation, low operating costs.
6, equipment more energy efficient: stand-alone energy-saving 15% to 30%, saving more than double system.
7, the nesting population adjustment range, to meet the requirements of different users.
8, low noise, less dust.
Working Principle:
The belt drives eccentric shaft rotating by motor. The vetical links will move up and down accordingly. The two pieces toggle plates are extended gradually when the vertical links goes up. The toggle plates will put movable jaw plate towards fixed jaw plate, the mineral stone in the crushing chamber( between movable jaw plate and fixed jaw plate) will be squashed, cleaved, and flexed and then be crushed. As the vertical links and movable jaw plate are backed by the power of spring and links, the discharge opening will increase, and the crushed mineral stone will be discharged. So we can say jaw crushers discharges stone indrectly. The eccentric shaft goes a circle, there is half circle time will be used for crushing, the remaining time will be used for discharging.
Jaw Crushers Usage:
Jaw crushers is ideally suitable for primary and secondary crushing. The highest antipressure strength of crushed material is 320Mpa. It is widely used in mining, metallurgy, construction, highway, railway , stone and water Resources & hydropower.
Production of Less Than Factory Standard:
Jaw crushers production to reach the factory standard exclusion method:
1, replace or increase the crusher;
2, replacement motor wiring;
3, nesting population adjustment to the instructions provided for nominal discharge opening and increased crusher used for crushing.
Liming Jaw Crushers Australia:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy jaw crushers manufacturer capable of producing all types of jaw crushers, good quality and reasonable prices. Liming Heavy Industry production of jaw crushers is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized jaw crushers is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of jaw crushers Australia, please contact us directly. We aim to provide you with the best jaw crushers and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
