Rock Sand Machine
Author:liming Post Date:2013-5-22

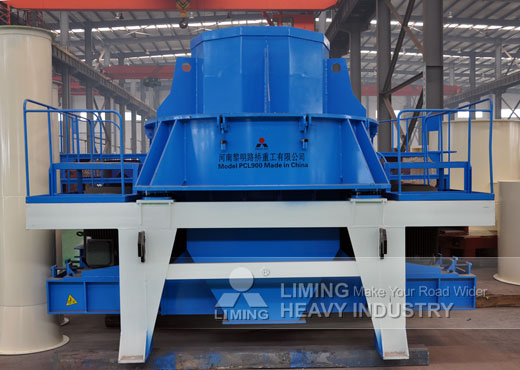

Rock Sand Machine
Rock Sand Machine Introduction:
PCL direct impact crusher, commonly known as rock sand machine. Our experts for many years to the development of mining machinery and equipment of the crystallization of the wisdom and correct decision, is a high-energy and low consumption equipment of international advanced level, its performance plays an irreplaceable role in the various ore fine crushing equipment, most line effective, practical and reliable gravel machine. I produced sand making so far, excellent market share in the national market, perfecting product performance, won the trust of customers, has won the domestic and foreign customers to its shores. The products are widely used in a variety of ores, cement, refractories, aluminum where the soil clinker, emery, glass raw materials, mechanism building sand, stone and various metallurgical slag and other industries.
Working Principle:
Material from the feed hopper into the rock sand machine, the material is divided into two parts by the sub-feeder, and in part by the middle of the sub-feeder into the high-speed rotation of the impeller, the impeller being rapidly accelerated acceleration of up to several hundred times the acceleration of gravity, then the speed of 60-70 m / s from the impeller three runner uniform projectile out, first of all with the broken part of the sub-feeder four weeks since the closing falling material impact, and with the impact to the vortex cavity lining materialson the material lining rebound, oblique impact to the top of the whirl chamber, but also to change its direction of motion, deflected downward movement of material emitted from the impeller form a continuous materials curtain. Such a material in the the whirl crushing cavity by twice as well as several times the probability of impact, friction and grinding crushing effect. The broken material is discharged from the lower part of the discharge opening. And form a closed cycle screening system, the three general circulation materials broken into 20 mesh. Material mutual self-impact crusher in the entire crushing process, not in direct contact with the metal components, but with the lining materials shock, friction and grinding, which reduces pollution angle, to extend the time of mechanical wear. Self-loop, the the whirl chamber internal clever airflow eliminates dust pollution.
Rock Sand Machine Application:
This product is widely used for making various kinds of mine, such as cement, fire-proof materials, aluminum soil, emery, glass raw materials, building sand, stone materials, and metallurgical slag. It is especially efficient to crush harder and causticity materials, such as carborundum, emery, and magnesium sand.
Rock Sand Machine Maintenance:
1, Regularly observed inside the crusher wear, the center of the feeding tube, cone hat, impeller, indecent Road liner circumferential shield, wear block wear, timely replacement or repair. The wear blocks should be replaced at the same time, wear blocks of the same weight. Observed non-crusher process open door to observe the inner workings of the case, in order to avoid danger.
2, Impact crusher each work 400 hours should be added to the amount of grease, 2,000 hours of work to open the spindle assembly bearing cleaning generally work 7200 hours, the replacement of a new bearing.
3, Transmission triangle belt tensioning force size should be adjusted appropriately, to ensure uniform Triangle tape by force. Dual motor drive, on both sides of the triangular tape should be grouped matching, we each group its length as consistent as possible. Should ensure that the difference between the two motor current does not exceed 15A.
Liming Rock Sand Machine:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy rock sand machine manufacturer capable of producing all types of rock sand machine, good quality and reasonable prices. Liming Heavy Industry production of rock sand machine is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized rock sand machine is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of rock sand machine, please contact us directly. We aim to provide you with the best rock sand machine and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
