Stone Sand Making Machine
Author:liming Post Date:2013-5-11

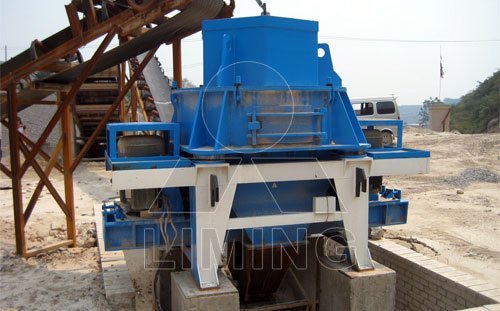

Stone Sand Making Machine
Stone Sand Making Machine Introduction:
Stone sand making machine, also known as PCI impact crusher combined in the development of mining machinery and equipment for many years on the basis of the actual situation of the domestic system of sand production, learn from American liming famous "stone at stone crusher principle and technology research and developmentgravel of efficient production equipment with domestic and international leading level. Sand performance plays an irreplaceable role in a variety of ore fine crushing equipment. It can be a variety of hard rocks (rocks, granite, basalt, limestone, river gravel, etc.) metal and nonmetal ore broken into compliance with various size of the construction sand and gravel material, sandy uniform particle size, high compressive strength, than natural sand, sand hammer breaking production more in line with the requirements of a high standard of construction sand, that can enhance the quality of construction.
Stone Sand Making Machine Performance Characteristics:
The structure is simple and reasonable, since the strike crusher, ultra-low cost of use; unique bearing installation and advanced spindle design, the machine has a heavy load and the characteristics of the high-speed rotation. Have crushing, coarse grinding function; high reliability, tight security devices to ensure that the equipment and personal safety; smooth operation, noise, energy efficient, high crushing efficiency; material moisture content, moisture content of up to 8 percent; low wear and tear of wearing parts, all wearing parts are made of high-quality wear-resistant materials at home and abroad, and long service life. A small amount of wear parts made ????of extra-hard wear-resistant material, small size, light weight, easy to replace parts. Inside the vortex chamber airflow self-circulation, dust pollution. Impeller whirl crushing cavity lining material from significantly reduce the wear parts cost and maintenance workload. The production process, the stone can be formed to protect the bottom, the body no wear and durability. Installation and diverse, mobile installation. Products are cubic, bulk density, small iron contamination. Can be used for stone shaping machine.
Working Principle:
Stone sand making machine into the hopper, sub-feeders, eddy crushing chamber, impeller body, spindle assembly base, transmission and motor consists of seven parts. Feed opening set wear rings, from the incoming feed equipment through the hopper into the crusher. The sub-feeder is installed in the upper part of the whirl crushing chamber, to divert from hopper incoming, part of the material through the center feeding tube directly into the impeller gradually accelerate to a high speed projectile out another part of the material from the center feeding outside of the pipe, bypass entering whirl outside of the crushing cavity, impeller, out of high-speed projectiles from the impeller material impact crusher, the high-speed rotation of the impeller whirl crushing cavity, the whirl crushing cavity can reside materials forming materials lining material crushing process takes place in a whirl crushing cavity, whirl crushing crushing effect parietal separated by lining materials only in the material between the crushing effect, play a wearable self lining . Another eddy crushing chamber, the spindle assembly, a motor, and transmission devices are installed in the bottom boarded, the shape of the base structure, the middle four prismatic space, the center of the four prism space for mounting the spindle assembly, formed on both sides of the discharge channel . The dual motors installed in the vertical at both ends of the base, the base can be mounted on the stand, and can be installed directly on the basis of regular refueling, oiling convenient, lead to the outside of the machine with tubing for the oil pump.
Stone Sand Making Machine Feeding Mode:
A, overflow into the material, impeller feed size the same. Such feed situation, to the amount of material to operate at full capacity (ie all motor power play) into the impeller further increase feed overflow into the whirl crushing cavity, impeller outside.
B, the waterfall fall into material feed particle size when the second feed particle size larger than the impeller on from two feed inlet, respectively Feeding.
Stone Sand Making Machine Application:
This product is widely used for making various kinds of mine, such as cement, fire-proof materials, aluminum soil, emery, glass raw materials, building sand, stone materials, and metallurgical slag. It is especially efficient to crush harder and causticity materials, such as carborundum, emery, and magnesium sand.
Liming Stone Sand Making Machine:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy stone sand making machine manufacturer capable of producing all types of stone sand making machine, good quality and reasonable prices. Liming Heavy Industry production of stone sand making machine is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized stone sand making machine is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of stone sand making machine, please contact us directly. We aim to provide you with the best stone sand making machine and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
