Sand Gravel Plant Design
Author:liming Post Date:2012-11-1
Sand Gravel Plant Design
Sand Gravel Plant Description:

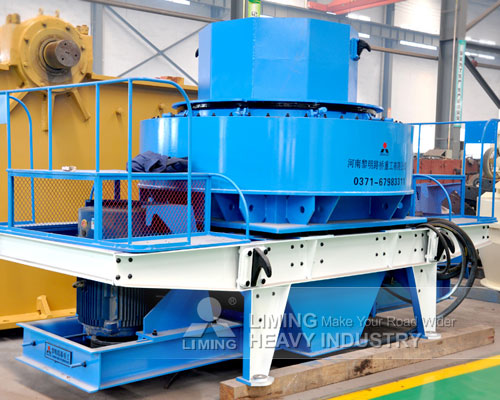

VSI series sand gravel plan to use state-of-the-art selective broken cleavage crushing principle, sufficient kinetic energy is directly applied to the material, the impact will convert kinetic energy to overcome the fragmentation of the material needed to shatter. Basic materials along its natural texture surface, the cleavage plane fracture, stone shape, and low self-consumption. The machine can achieve the conversion of two works of stone at stone "and" stone blacksmith, is professional crushing technology and machinery manufacturing perfect combination of a model, fully embodies new technologies, new processes.
VSI series sand gravel plan can be produced HPC series equipment for efficient hydraulic cone crusher, PF Hard Rock Impact Crusher, PE deep cavity jaw crusher and screening washing, the design of a dedicated high-speed (high-grade ) highways, high-speed railway, hydropower industry aggregate production of new gravel crushing and screening Production.
VSI series sand gravel plan applies to the mining, chemical, metallurgy, building materials, coal, refractories and other industries. Well known at home and abroad, exported to Russia, Kazakhstan, Azerbaijan, Turkey, Kuwait, South Africa, Egypt, Vietnam, Malaysia, India, Australia, Korea, Canada and the European Union and other countries and regions.
Working Principle for Sand Gravel Plant Design:
Waterfall off the center feed: material falling into the hopper through the central feed hole into the rejection of high-speed rotating wheel round rejection was quickly accelerated up to several times the acceleration of gravity acceleration, and high-speed from the rejection round within the injection, the first impact, then with another part of the material with the rebound after a free-fall impact lining materials (stone hit stone) or counterattack block (the stone blacksmith) on the rebound oblique impact to the top of the vortex chamber, but also to change its direction of movement, the deflection downward movement of the continuous material curtain is formed from the impeller material emitted impact. In this way, a material role in the the vortex crushing cavity by two to several chance to impact, friction and grinding crushing. The broken material is discharged from the lower part of the discharge opening.
Center accompanied by endless waterfall off feed feed: material falling into the feed hopper, annular hole fall, the plate and divided into two materials, one by riving disk into a high-speed rotation of the rejection round, the other shares from the sub- around the feed tray down. Material into the rejection wheel, the wheel rejection was quickly accelerated up to several times the acceleration of gravity acceleration, and high-speed injection from the wheel rejection, first of all with broken by another part of the material impact of free fall around the sub-feeder, and then with impact the eddy the cavity eddy currents lining on the material lining rebound, oblique impact to the top of the vortex chamber, and to change its direction of motion, deflected downward movement, and impact materials emitted from the impeller form a continuous material curtain. In this way, a piece of the materials in the the vortex crushing cavity receives twice to several times the chance of impact, friction and grinding crushing effect. The broken material is discharged from the lower part of the discharge opening.
Technical Advantages of Sand Gravel Plant Design:
Its unique rotor and chamber design, handling large and high into the sand, stone type products, low flakiness content, pushing density; materials and materials from the impact and the mechanism of self-lining to reduce material and metal contact, to extend the life of wearing parts to reduce iron contamination of the finished material; unique structure and materials to extend the service life of the wear parts, lower operating costs; the special rotational structure, equipment run in a steady, can be equipped with automated control system, power lifting, hydraulic lifting device, anti-vibration sensing device, the cumulative boot timing device to ensure the safe operation of equipment; clever internal airflow self-circulation design eliminates dust dispersion; simple structure, easy operation and maintenance. The new technology, fully embodies the new technology, be able to solve the machine-breaking problem, saving the cost of the investment broken broken equipment.
Liming Sand Gravel Plant:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy sand gravel plant manufacturer capable of producing all types of sand gravel plant, good quality and reasonable prices. Liming Heavy Industry production of sand gravel plant is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized sand gravel plant is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of sand gravel plant design, please contact us directly. We aim to provide you with the best sand gravel plant and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
