Soap Stone Grinding Machine
Author:liming Post Date:2013-7-19

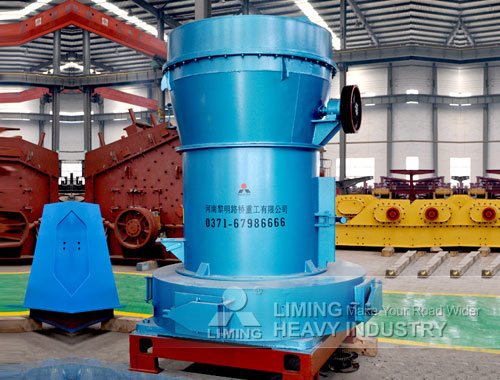

Soap Stone Grinding Machine
Soap Stone Grinding Machine Introduction:
Soap stone grinding machine for barite, calcite, feldspar, talc, marble, limestone, ceramic, glass, Mohs hardness not more than seven, non-flammable and explosive mining humidity below 6%,280 kinds of materials in the stone industry, building materials, metallurgy and other industries powder processing, product size is in the range of 100-425 mesh arbitrary regulation.
Working Principle:
Large block of raw materials to the required feed size jaw crusher crushing machine materials transported to storage silos, and then by the electromagnetic vibrating feeder evenly sent to the host of grinding cavity, shovel bucket elevatorknife and grinding roller with the transfer process, the material is scooped up throwing feeding grinding roller between the roller ring, the formation of the litter layer, the material between the roller and grinding ring grinding, and thus achieve pulverizing purpose. The powder after grinding by the fan airflow into the analysis machine for powder fineness requirements fine powder with the air flow through the pipe into the large cyclone collector, collected separately, then unloader discharge is the finished powder return air duct airflow from the upper end of the large cyclone collector inhalation blower. The powder will be undesirable leaves thrown to the outer wall and the air flow from the coarse sub due to the role of self-gravity into the grinding chamber for regrinding. The entire airflow system of the machine is closed loop, and is in the positive and negative pressure state where the circulating flow.
Soap Stone Grinding Machine Care and Maintenance:
1, Mill in the use of the process, there should be a fixed staff responsible for the care, the operator must have a certain level of technology. Mill before installing the operating personnel must carry out the necessary technical training to understand the principle of the mill performance, familiar with operating procedures.
2, Mill normal, should develop equipment "equipment maintenance, safe operation of the system" can ensure the mill long-term safe operation, and at the same time have the necessary repair tools and grease and accessories.
3, Mill use for some time, should be carried out maintenance, overhaul to replace wearing parts of the roller mill ring blade processing, grinding roller device in use before connecting bolt nut should be carefully examined to see if there is a loosening , to add a little grease.
4, The roller device use time more than 500 hours or so to replace the roller of each roller comprising rolling bearings must be cleaned, damaged parts should be replaced, refueling tool can be used to manually add the oil pump and grease gun.
Soap Stone Grinding Machine Accessories Material:
The soap stone grinding machine fittings grinding roller and grinding ring. Which, roller and grinding ring two materials:
1, 65Mn: after using this material, the grinding roller and grinding ring, its durability is significantly improved. This product is characterized by high hardness, wear resistance, and magnetic. The product is mainly used for removal of iron powder processing areas. The product after normalizing heat treatment, the mechanical properties greatly improved, making the product not only good wear resistance and toughness greatly improve.
2, Mn13G2: Compared with 65Mn, roller and grinding ring using of the Mn13G2 material casting, durability has changed. This product castings after pouring water toughening treatment. Water toughening treatment after casting With high tensile strength, toughness, stone and non-magnetic. Roller and grinding ring more durable. Use of the process by the surface hardening, the deformation of the severe shock and strong pressure, and martensite is formed, thereby forming a high abrasion resistant surface layer, while the inner maintaining excellent toughness even wear to the thin, can also be withstand greater shock load.
Liming Soap Stone Grinding Machine:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy soap stone grinding machine manufacturer capable of producing all types of soap stone grinding machine, good quality and reasonable prices. Liming Heavy Industry production of soap stone grinding machine is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized soap stone grinding machine is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of soap stone grinding machine, please contact us directly. We aim to provide you with the best soap stone grinding machine and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
