Weadag Crusher Manufacturer in German
Author:liming Post Date:2013-7-12
Weadag Crusher Manufacturer in German
Weadag Crusher Introduction:

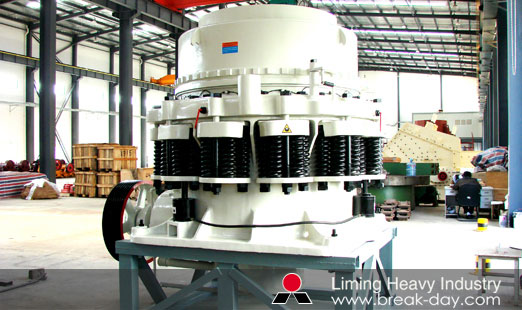

Spring cone crusher began in 1878, the United States invented the gyratory crusher with continuous crushing action, mainly used for compressive strength does not exceed a 300Mpa the ores and rocks (iron ore, limestone, copper ore, quartz, granite,sandstone, etc.) the breaking or crushing. The type crusher material layer crushed theory ", with hydrostatic broken, broken and high production efficiency, easy adjustment, economic energy and operating costs low, widely used in metallurgy, building materials, road construction, stone production of silicate industrial.
Weadag Crusher Technical Advantages:
Spring cone crusher, after senior experts continue to carefully designed to improve the structure is more reasonable, with more technical advantages:
1, moving cone continuous rotation along the working surface of the material crushing process and unloading process alternating continuous, high production efficiency.
2, the operation is easy to install. The machine adopts the secondary vibration isolation foundation vibration, and noise, and the installation without the enormous foundation and anchor bolts.
3, according to the material layer crushed theoretical "design, product Liaoduo uniform cubic shape, more uniform wear of the moving cone surface.
4, moving cone and fixed cone are upright, dynamic cone swing, in the crushing chamber near the discharge port, parallel with a gap equal between the movable cone and fixed cone evenly finished Liaoduo.
5, dry both oil or water sealed, dust and impurities can not into the man-machine body, thus ensuring the Run the cleaning of edible vegetable oil, extending the sliding bearing, thrust ball bearings life, making the machine reliable operation.
6 parts all processing using high quality materials, longer machine life.
Weadag Crusher Type:
Spring cone crusher of spring cone crusher, coarse crushing the chopped spring cone crusher and crushing spring cone crushers three.
Thick broken spring cone crusher also known as cycles crusher; broken spring cone crusher for the standard cone crusher; crushing cone crusher is also called a short head cone crusher or "circular grinding.
Spring cone crusher bodies made of the three types of substantially identical, the only difference lies in the different shape of the dynamic cone and the fixed cone, so that a cross-sectional shape of the crushing chamber, the feed and out-feed particle size is not the same.
Main Structure:
Weadag crusher mainly consists of frame, fixed cone assembly, moving cone assembly, spring mechanism, the Ministry of bowl-shaped shaft frame and drive components. Auxiliary part of the electrical system, lubrication system, and hydraulic clean cavity system.
Fixed cone assembly is mainly composed of adjustment sleeve, rolling acetabular wall, mainly by the spindle of the moving cone assembly, dynamic cone crushing wall composed, transmission part is mainly composed of large pulley, drive shaft, a small bevel gear, a large bevel gear and other components.
Weadag Crusher Fault Repair:
1, the oil temperature is too high. Reason: bad oil quality; insufficient oil; bearing damage. Remedy: change the oil, or fuel, or replace the bearings.
2, low oil pressure after oil pump start or the indicator no oil flow. Cause: low oil temperature; the tubing clogged or the oil pump is not working properly. Elimination of the way: the heat to raise the oil temperature; repair pipelines or oil pump.
3, hydraulic oil temperature rise. Cause: Tubing or blockage of the oil groove, the safety valve malfunction. Eliminate way: down to check repairs.
4, contains a large number of fine mud and impurities in the oil. Reason: sealed dust-proof device failure; plumbing blockage or leak caused by lack of water. Eliminate way: stop re-sealed or cleaning maintenance, replacement oil.
5, Crusher strong vibration, moving cone suddenly spin faster. Reason: poor lubrication of the spindle bushing package tight; moving cone sink or spherical thrust bearing damage; tapered bushing Shangcuan activities resulting in the lack of spindle clearance. Elimination of the way: the reasons to replace damaged pieces, to overhaul oil pump and pipeline.
6, Crushing or idling produces an audible splitting sound. Reason: liner relaxation; the moving cone or fixed cone lining round impact. Eliminate way: down to check the screw fastening the zinc coating off. Damaged screws or earrings, you need to remove the adjustment ring replacement screws and earrings; zinc layer off re-cast zinc layer; Check the liner ovality necessary machining.
7, the drive shaft rotary uneven, resulting in a strong percussion pulley rotation, moving cone does not move. Cause: gear badly worn or damaged; join key damage; spindle break. Elimination of the way: the downtime to replace the gear, and the meshing clearance to meet the requirements; replace the join key; replacement spindle to strengthen the work of the removal of iron.
8, Row of ore particle size increases. Causes: severe liner wear. The way to eliminate: Adjust the port of discharge, reduce the size of the port of discharge; replacement liner.
Liming Weadag Crusher Manufacturer in German:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy weadag crusher manufacturer capable of producing all types of weadag crusher, good quality and reasonable prices. Liming Heavy Industry production of weadag crusher is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized weadag crusher is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of weadag crusher manufacturer in German, please contact us directly. We aim to provide you with the best weadag crusher and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
