5 Micron Grinding Machine
Author:liming Post Date:2013-11-5

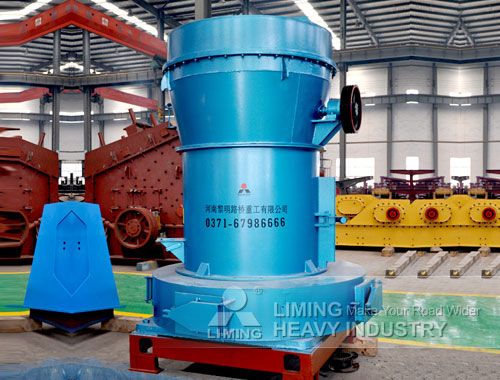

5 Micron Grinding Machine
5 Micron Grinding Machine Introduction:
5 micron grinding machine is independently developed a new mechanical grinding equipment, its low energy consumption, set centrifugal crushing, impact crushing, squeezing crushed in an energy saving 40 to 50% higher than other types of mechanical grinder. The high fineness: with the grading system from Split, the product fineness ≥ 2500 mesh, feeding, feed size ≤ 50mm material only the a coarse broken equipment. Low abrasion, crushing part of the wearing parts the composite wear new material, long service life, pollution-free processing Mohs hardness ≤ 5 material.
5 Micron Grinding Machine Installation:
Install 5 micron grinding machine run the site have not been installed, you should take good care of the exposed surfaces are coated with anti-rust grease, and avoid the sun and rain, to prevent the body rust water, To establish maintenance system. Plant and foundation should have enough height and installation location of the installed base size of the chart according to Raymond, Raymond should be based on high-standard cement and shall be buried reinforced before being placed foundation, and I buried conduit or cable trench. After pouring the cement foundation, there must be a 15-day maintenance period. Should be 2 to 3 tons with a lifting tool for Raymond installation maintenance. Raymond from the factory to use over six months, to host the central axis of the system, the transmission roller device, and analysis of oil pools should be cleaned inspection, cleaning checked respond to the various components add sufficient lubricant.
Structural Features:
1, the three-dimensional structure, small footprint, sets strong from the block not expect the finished powder independence its own production system.
2, refined powder fineness of uniform through screening rate of 99%, it is difficult to have other milling equipment.
3, host transmission with sealed gear box and pulley transmission smooth, reliable operation.
4, important parts are made of high-quality steel, wear-resistant parts are made of high-performance wear-resistant materials, the whole high wear resistance, reliable operation.
5, the electrical system with centralized control, milling workshop basic unmanned operation, and maintenance.
Working Principle:
Large block of raw materials to the required feed size jaw crusher crushing machine materials transported to storage silos, and then by the electromagnetic vibrating feeder evenly sent to the host of grinding cavity, shovel bucket elevatorknife and grinding roller with the transfer process, the material is scooped up throwing feeding grinding roller between the roller ring, the formation of the litter layer, the material between the roller and grinding ring grinding, and thus achieve pulverizing purpose. The powder after grinding by the fan airflow into the analysis machine for powder fineness requirements fine powder with the air flow through the pipe into the large cyclone collector, collected separately, then unloader discharge is the finished powder return air duct airflow from the upper end of the large cyclone collector inhalation blower. The powder will be undesirable leaves thrown to the outer wall and the air flow from the coarse sub due to the role of self-gravity into the grinding chamber for regrinding. The entire airflow system of the machine is closed loop, and is in the positive and negative pressure state where the circulating flow.
5 Micron Grinding Machine Application:
5 micron grinding machine is widely applicable to the barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glassinsulation materials Mohs hardness of not more than 7 and humidity below 6% of non-flammable mineral, chemical, construction and other industries more than 300 kinds of materials for high fine powder processing.
Liming 5 Micron Grinding Machine:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy 5 micron grinding machine manufacturer capable of producing all types of 5 micron grinding machine, good quality and reasonable prices. Liming Heavy Industry production of 5 micron grinding machine is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized 5 micron grinding machine is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of 5 micron grinding machine, please contact us directly. We aim to provide you with the best 5 micron grinding machine and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
