bell rock crusher
Author:liming Post Date:2012-8-27
bell rock crusher
Bell Rock Crusher:
The bell rock crusher content a row compound particle size of greater than three millimeters of the total milling machinery high capacity 50%. Invented by British Hengan. Coarse crushing operations are often divided into feeding and nesting size size broken, broken, and crushing. The gravel equipment used jaw crusher, impact crusher, impact crusher, compound crusher, single stage hammer crusher, vertical crusher, gyratory crusher, cone crusher, roll crusher machines, double roll crusher, Combo crusher, crusher several molding.
The bell rock crusher mainly includes the following types:
Jaw crusher:
The jaw crusher is squeezing and bending role of two jaw materials, rough broken or broken in various hardness materials broken machinery. Their broken bodies are composed of fixed jaw and movable jaw the when two jaw near the material is broken, when two jaw left less than a block of material discharge opening is discharged from the bottom. Its crushing action is carried out intermittently. This crusher due to the advantages of simple structure, reliable work and crushing hard materials are widely used in industrial sectors such as mineral processing, building materials, silicate and ceramic jaw crusher less investment, less refined rubble, the cost of production is low.
Jaw crusher used two elbows and single bracket plate. The former moving jaw work only for simple swing arc, it is also known as simple swing jaw crusher; latter while swinging in an arc up and down movement, it is also known as complex swing jaw crusher. The jaw crusher is widely used in mining, smelting, building material, highway, railway, water conservancy and stone industry and many other sectors, crushing various materials with compressive strength less than 320 MPa.

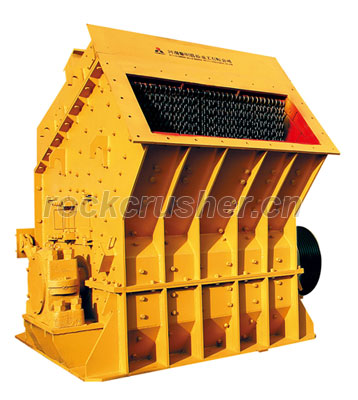

Impact Crusher:
Impact Crusher uses the principle of impact crusher, the material with the natural texture resolution, stone shape is good, strong stability. Impact crusher for crushing limestone, asbestos ore, coal, quartz sand, calcium carbide, dolomite, pyrite and other materials. Can be used to rough broken, broken, broken bits can also be used.
Especially for high-grade highways following the non-slip surface layer of asphalt concrete with aggregate fewer requirements and basalt, andesite and other hard materials processing power requirements of 100t / h.
Ore into the crusher, received the impact of the high-speed rotary blow plate, ore along the bedding plane, joint planes selective fragmentation. The ore after impact, enormous energy, and high speed along the tangent direction of the board of the blow thrown to the first-class counter plate after the impact of the counter plate, the ore again received crushed, then from the first a counterattack plate block of material returned, they suffered against board re-impact, resulting in the "interlocking" type of ore Crusher crushing effect. When the ore journeys in between the pads and the counter plate, the addition to the fight against the impact plate and counter plate, there ore between several colliding role. This process repeated until the crushed material particle size is smaller than the gap between the pads and the counter plate, and discharged from the lower part of the impact crusher.
Crusher appeared later, but the development of fast. At present, it has been our cement, building materials, coal and stone and mineral processing and other industrial sectors are widely used in a variety of ores and crushing operations, ore coarse crushing equipment used. Impact Crusher has been growing so rapidly, mainly because it has a need for superior characteristics:
Cone Crusher:
HPC efficient cone crusher Liming Heavy introduction of German technology, combined with the international use of metal materials performance and design an efficient crusher. The unique structure optimization, unique crushing principle and multi-layered hydraulic systems, HPC efficient cone crusher with stones of good quality, high efficiency, stable production capacity as well as the overall performance. Suitable for medium crushing Platts hardness ≤ 5 to 16 a variety of ores and rocks, such as iron ore, non-ferrous metal ores, granite, limestone, quartzite, sandstone, pebbles and other widely used in metal and nonmetal mines, cement plants , gravel metallurgical industries.
HPC efficient cone crusher main components of the base assembly, the eccentric sleeve assembly, drive shaft assembly, motor assembly, moving cone assembly, fixed cone assembly. Assisted in part by the electrical system, lubrication system, hydraulic system. Motor through belt work, drive shaft, bevel gear pair driven eccentric sleeve rotation, moving cone to do in the role of eccentric sleeve the spin pendulum movement movable cone and fixed cone sometimes near sometimes deviate from. Materials continue to be squeezed in the crushing cavity, the impact is broken, broken material discharged from the lower.
Liming Bell Rock Crusher:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment in China, capable of producing different types of rock crusher. Liming rock crusher have good machine performance. If you need the bell rock crusher or a similar product, please contact us. We will provide quality service so that you get the harvest.
