cone crusher advantages/disadvantages
Author:liming Post Date:2012-8-22
cone crusher advantages/disadvantages

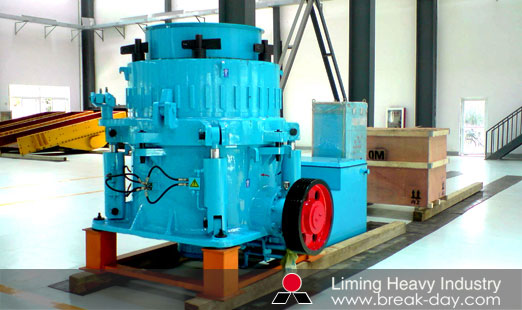

Cone Crusher Introduction:
Efficient cone crusher is my company in the introduction, the basis of absorbing foreign technology, based on customer needs, based on laminated crushing principle and conceptual design and development of multi-break less grinding set high wobble, optimization of cavity-type and reasonable stroke in one Modern high-performance crusher.
Efficient cone crusher can be widely used in metal and nonmetal mines, cement plants, construction, sand and metallurgical industries. Apply to iron ore and non-ferrous metal ore, granite, limestone, quartzite, sandstone, cobblestone.
Cone Crusher Works:
Cone crusher works: work, by the motor through V-belts, pulleys, drive shaft, a small bevel gear, a large bevel gear driven eccentric sleeve rotation, broken cone axis of the eccentric sleeve forced to move to the next do rotational swing, so the crushing wall surface sometimes near and sometimes leave the rolling acetabular wall surface, so that a ring of material in the fixed cone and movable cone crushing cavity constantly under attack, squeezed and bent and broken. After repeated squeezing, shock and bending, the material crushing to the required particle size, the lower part of the discharge.
Cone Crusher Advantages / Disadvantages:
Cone Crusher Advantages:
1, High performance
Cavity optimization design combined with reasonable speed and stroke, so that the models in the case of the same dynamic cone diameter acting up. Therefore, compared with the same type cone crusher with higher performance and production capacity.
2, Product size composition
Laminated crushing principle, the product cube proportion significantly improved, reduce flakiness stone, more uniform stone size.
3, Stability
When iron and other non-broken material into the machine, the over iron protection device will automatically release, and then automatically reset. Over iron protection has fixed discharge opening return point, miscellaneous iron through the crushing chamber to quickly restore the original discharge opening
4, Easy to clean cavity
Crusher downtime in the load condition, the hydraulic cavity clearing system may quickly clean up the crushing chamber, greatly reducing downtime.
5, High reliability
Large diameter spindle, heavy-duty main frame and independent thin oil lubrication system, automatic control system to ensure that the equipment is rugged, reliable operation.
6, Easy maintenance easy to operate
All parts are removable from the top or side, so that fixed cone and movable cone assembly can be easy to split out. Bronze plain bearings in high-impact vibration to be able to maintain the excellent performance of the bearing crushing environment, and is more economical than the rolling bearing, maintenance is more convenient.
7, Low production cost
Due to the large capacity, high reliability, easy maintenance, greatly reducing the cost of production.
8, Are widely used
Efficient Cone Crusher is characterized by the crusher to play the greatest performance in order to apply to all kinds of crushing process: from special coarse crushing to fine crushing, fixed crusher to the mobile crusher station.
Efficient cone crusher from special coarse crushing to fine crushing the various cavity type to choose from, so choose the crushing chamber type under the crushing process.
9, Split lubrication independent oil lubrication system, multi-point control, to ensure that the models bearing lubrication dual protection, and can achieve the whole automatic safety protection.
Cone Crusher Disadvantages:
1, The main users of crushing, production is relatively low.
2, Discharge opening smaller, mixed with a compound non-broken material more likely to lead to an accident.
3, High maintenance costs.
