Grinding Mill Machine Specification
Author:liming Post Date:2013-9-27

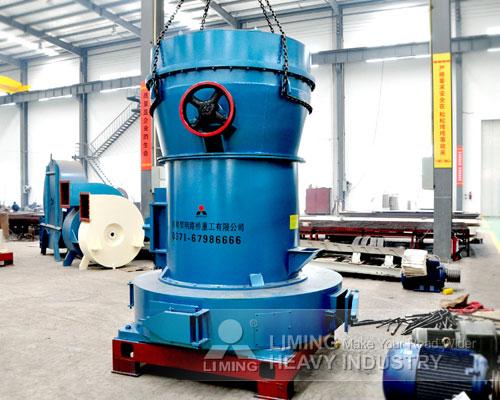

Grinding Mill Machine Specification
Grinding Mill Machine Introduction:
Grinding mill machine for barite, calcite, feldspar, talc, marble, limestone, ceramic, glass, Mohs hardness not more than seven, non-flammable and explosive mining humidity below 6%,280 kinds of materials in the stone industry, building materials, metallurgy and other industries powder processing, product size is in the range of 100-425 mesh arbitrary regulation.
Grinding Mill Machine Care and Maintenance:
1, Mill in the use of the process, there should be a fixed staff responsible for the care, the operator must have a certain level of technology. Mill before installing the operating personnel must carry out the necessary technical training to understand the principle of the mill performance, familiar with operating procedures.
2, Mill normal, should develop equipment "equipment maintenance, safe operation of the system" can ensure the mill long-term safe operation, and at the same time have the necessary repair tools and grease and accessories.
3, Mill use for some time, should be carried out maintenance, overhaul to replace wearing parts of the roller mill ring blade processing, grinding roller device in use before connecting bolt nut should be carefully examined to see if there is a loosening , to add a little grease.
4, The roller device use time more than 500 hours or so to replace the roller of each roller comprising rolling bearings must be cleaned, damaged parts should be replaced, refueling tool can be used to manually add the oil pump and grease gun.
Grinding Mill Machine Installation:
Install grinding mill machine run the site have not been installed, you should take good care of the exposed surfaces are coated with anti-rust grease, and avoid the sun and rain, to prevent the body rust water, To establish maintenance system. Plant and foundation should have enough height and installation location of the installed base size of the chart according to Raymond, Raymond should be based on high-standard cement and shall be buried reinforced before being placed foundation, and I buried conduit or cable trench. After pouring the cement foundation, there must be a 15-day maintenance period. Should be 2 to 3 tons with a lifting tool for Raymond installation maintenance. Raymond from the factory to use over six months, to host the central axis of the system, the transmission roller device, and analysis of oil pools should be cleaned inspection, cleaning checked respond to the various components add sufficient lubricant.
Grinding Mill Machine Work Process:
Will need to crush the material uniformly continuous fed into the grinding chamber, scoop up material sent between the roller and grinding ring rotates, centrifugal force, grinding roller swings out, pressed on the grinding ring blade, because of the grinding rollersrolling the reach crushed purpose.
Material after grinding, grinding into the analysis with the blower circulating air separation, fine through coarse material Rockwell will re-grinding, qualified powder into the finished product cyclone powder collector with the flow discharged stone tube, that is for the finished product.
Materials in the grinding room was grinding some moisture, grinding heat, moisture evaporation, and the whole pipe interface is not tight, the outside air is inhaled, the circulation increased pressure to ensure that the mill work in the vacuum state , the increase in gas flow through the I wind tube into the dust collector, into the atmosphere after being purified.
Structural Features:
1, the three-dimensional structure, small footprint, sets strong from the block not expect the finished powder independence its own production system.
2, refined powder fineness of uniform through screening rate of 99%, it is difficult to have other milling equipment.
3, host transmission with sealed gear box and pulley transmission smooth, reliable operation.
4, important parts are made of high-quality steel, wear-resistant parts are made of high-performance wear-resistant materials, the whole high wear resistance, reliable operation.
5, the electrical system with centralized control, milling workshop basic unmanned operation, and maintenance.
Liming Grinding Mill Machine Specification:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy grinding mill machine manufacturer capable of producing all types of grinding mill machine, good quality and reasonable prices. Liming Heavy Industry production of grinding mill machine is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized grinding mill machine is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of grinding mill machine specification, please contact us directly. We aim to provide you with the best grinding mill machine and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
