Gyratory Crusher Manufacturer
Author:liming Post Date:2012-12-14
Gyratory Crusher Manufacturer
Gyratory Crusher Introduction:

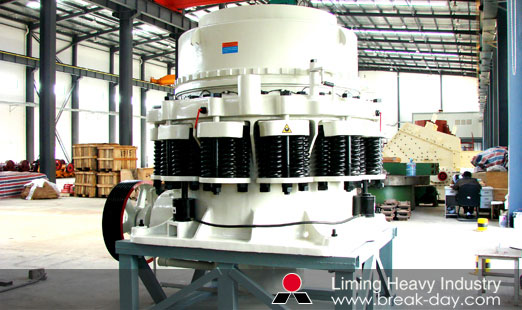

Spring cone crusher began in 1878, the United States invented the gyratory crusher with continuous crushing action, mainly used for compressive strength does not exceed a 300Mpa the ores and rocks (iron ore, limestone, copper ore, quartz, granite,sandstone, etc.) the breaking or crushing. The type crusher material layer crushed theory ", with hydrostatic broken, broken and high production efficiency, easy adjustment, economic energy and operating costs low, widely used in metallurgy, building materials, road construction, stone production of silicate industrial.
Working Principle:
Spring cone crusher main rack, pulley, the horizontal axis, eccentric sleeve on the broken wall (fixed cone), under the crushing wall (dynamic cone), fluid couplings, lubrication system, control system, such as a few parts.
The its dynamic cone fixed in a hanging vertical axis, the vertical axis is placed on the horizontal axis of the eccentric sleeve. Work, the motor driven pulley or coupling rotation, horizontal axis, the eccentric sleeve, forcing the moving cone hanging vertical axis rotary pendulum movement along the inner surface of the fixed cone. Moving cone to move closer to the fixed cone section material squeezed by moving cone, impact and bending and breaking, the formation of the crushing chamber; deviation from the fixed cone moving cone material has been broken under its own weight from the conical bottom unloading. Crusher by the continuity of the work to achieve sustained stone crushing.
The the support sleeves crusher frame body junction pressed by spring, not fall into the piece of metal crusher broken objects or due to some reason, the machine is overloaded, the spring that is deformed by compression crusher row ore mouth increases foreign body from the crushing chamber discharge, to achieve insurance, preventing damage to the machine. Is expelled after the action of the spring, Pai mine mouth automatically reset the machine back to normal work.
Gyratory Crusher Main Structure:
CS series spring cone crusher mainly consists of frame, fixed cone assembly, moving cone assembly, spring mechanism, the Ministry of bowl-shaped shaft frame and drive components. Auxiliary part of the electrical system, lubrication system, and hydraulic clean cavity system.
Fixed cone assembly is mainly composed of adjustment sleeve, rolling acetabular wall, mainly by the spindle of the moving cone assembly, dynamic cone crushing wall composed, transmission part is mainly composed of large pulley, drive shaft, a small bevel gear, a large bevel gear and other components.
Gyratory Crusher Manufacturer in China:
China is a big country, and could produce gyratory crusher every year, a large number of quality product is produced and sold around the world. The quality of gyratory crusher produced in China is guaranteed, and the price is relatively cheap. It is the best choice to buy gyratory crusher in China. But choose to buy gyratory crusher can not be blindly freeloaders, they should have chosen a large formal gyratory crusher manufacturer. So to protect the interests of buyers, and can provide the necessary technical support and maintenance services.
Gyratory Crusher Manufacturer - Liming:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy gyratory crusher manufacturer capable of producing all types of gyratory crusher, good quality and reasonable prices. Liming Heavy Industry production of gyratory crusher is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized gyratory crusher is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of gyratory crusher manufacturer, please contact us directly. We aim to provide you with the best gyratory crusher and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
