Harga Jaw Plate Indonesia
Author:liming Post Date:2013-1-11
Harga Jaw Plate Indonesia
Harga Jaw Plate Working Principle:
The main structure of the harga jaw plate frame, eccentric shaft, big pulley, flywheel, side guard plate, toggle plate, toggle plate back seat, adjust gap screw, reset spring, fixed jaw plate and movable jaw plate.
Work when the motor drive belt and pulley, through the eccentric shaft to make the movable jaw up and down movement, when the movable jaw rises larger angle between toggle plate and moving jaw, thus promoting the movable jaw plate close to the fixed jaw plate at the same time the material pushed pressure, rubbing, grinding, such as multiple broken; when the movable jaw down, the angle between toggle plate and moving jaw smaller, movable jaw plate lever spring to leave the fixed jaw plate material has been crushed in the gravity next, after the spout of the lower portion of the jaw cavity free unloading. The harga jaw plate is thus intermittent, crushing and unloading process in the jaw cavity alternately. With the motor continuously rotating crusher mobile jaw crushing and nesting periodicity, and mass production.
Operating Environment:

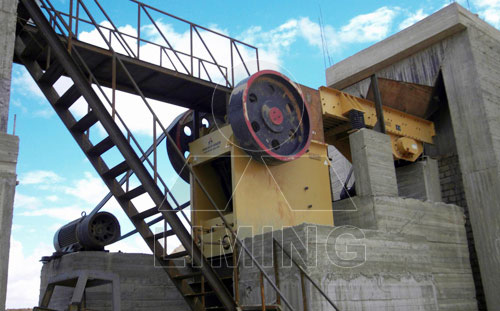

In the process of huge stones are broken into small stones, the first crusher is usually referred to as a "master" crusher. The longest history, but also the most solid crusher harga jaw plate. harga jaw plate feeding the material from the top of the entrance into the crushing chamber containing jaw teeth. Jaw teeth with great force the material to the top of the wall will be broken into smaller stones. Support the jaw movement is an eccentric shaft, this axis throughout the body architecture. The eccentric motion is usually generated by a flywheel fixed on the shaft ends. Flywheel and often eccentric support bearing spherical roller bearings, bearing extremely harsh working environment. The bearings must withstand tremendous impact load, abrasive sewage and high temperature. Although this work is extremely harsh environment, harga jaw plate still need to work very reliably.
Harga Jaw Plate Performance:
Harga jaw plate can be different sizes of raw materials, broken into small pieces of uniform particles, harga jaw plate either supporting and beneficiation equipment, sand and gravel equipment can also be used alone. harga jaw plate can produce the cornerstone of the road, railway ballast stone and construction sand and gravel aggregate. The harga jaw plate divided into coarse crushing harga jaw plate and crushing harga jaw plate, which is commonly referred to as PE series harga jaw plate and PEX series harga jaw plate. harga jaw plate production products, has crushing, product uniform particle size, simple structure, reliable work, easy maintenance, low operation cost characteristics.
Harga Jaw Plate Common Sense:
The harga jaw plate is often due to improper use caused the crash phenomenon crusher to be crushed when the material, we must pay attention to pay attention to the uniformity of the material under, there is the hardness of the material was suitable, if perfect, canplus one step.
The main factors that generally affect the harga jaw plate nip angle and the number of revolutions. Nip angle is moving Hubei and the angle between the fixed jaw. According to the calculation of the maximum nip angle up to 32 degrees. The actual use are less than 25 degrees, typically about 18-20 degrees. Nip angle is too large, make up the ore crushing cavity extrusion, resulting in injuries or damage to other equipment, at the same time as the nip angle increases (broken than increase) decrease in productivity. Adjust the size of the port of discharge, and also change the size of the nip angle. In real life, according to the row of ore particle size to adjust the size of the discharge mouth. Therefore, to ensure that the product size requirements, try to Pai mine mouth amplification is reasonable. Pai mine mouth size can be adjusted by adjusting the block to adjust the size of the port of discharge, pay attention to the broken relationship between the ratio and productivity.
Within a certain range, an increase of the number of revolutions of the eccentric shaft, the production capacity of the crusher can be improved, but also increases the power consumption of the crusher unit weight of ore. The speed is too large, the time to discharge causes the crushing chamber has been crushed ore to produce clogging, but the production capacity to reduce, increase in power consumption, therefore, harga jaw plate should be an optimum number of revolutions.
Harga jaw plate eccentric shafts, connecting rods, movable jaw plate, shaft and liner wear parts, lubrication and replacement needs constant attention.
Harga Jaw Plate Main Structure:
Structure of the harga jaw plate frame, eccentric shaft, big pulley, flywheel, moving jaw, side guard plate, toggle plate, toggle plate back seat, adjust gap screw, reset spring, fixed jaw plate and movable jaw plate., which brackets also play a role as insurance.
Liming Harga Jaw Plate Indonesia:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy harga jaw plate manufacturer capable of producing all types of harga jaw plate, good quality and reasonable prices. Liming Heavy Industry production of harga jaw plate is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized harga jaw plate is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of harga jaw plate Indonesia, please contact us directly. We aim to provide you with the best harga jaw plate and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
