Kyc Crusher Parts
Author:liming Post Date:2013-3-21
Kyc Crusher Parts
Kyc Crusher Parts Introduction:

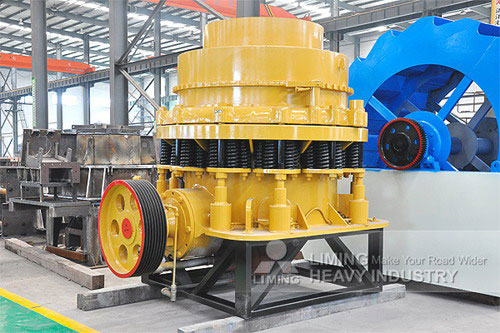

CS series cone crusher is my company in the introduction, the basis of absorbing foreign technology, based on customer demand, based on the design and development of laminated crushing principle and the concept of multi-break less grinding set high wobble, optimization of cavity-type and reasonable stroke inone of the modern high-performance crusher.
CS series cone crusher can be widely used in metal and nonmetal mines, cement plants, construction, sand and metallurgical industries. Apply to iron ore and non-ferrous metal ore, granite, limestone, quartzite, sandstone, cobblestone.
Kyc Crusher Parts Performance Characteristics:
Spring cone crusher is used to the material layered select broken. The crushing chamber filled feed, play after a full range of extruded, cut and rub broken, since broken the purpose of the material to withstand the crushing chamber so broken parietal avoid direct contact with, and effectively prevent the liner mutual wear avoid materials contaminated metal pollutants, so that the vulnerability of the aircraft to reduce the wear and tear of consumable parts effectively extend the service life of the wear parts, crushing ratio is more than double that of other similar devices.
Static pressure crushing, crushing ratio increased, arbitrary strong product particle size, size can be adjusted. Has a certain relationship between the crushing force and eccentric static torque and speed of the aircraft. Adjusting the gap between the crushing chamber can easily adjust the desired crushing ratio.
Kyc Crusher Parts Type:
Spring cone crusher of spring cone crusher, coarse crushing the chopped spring cone crusher and crushing spring cone crushers three.
Thick broken spring cone crusher also known as cycles crusher; broken spring cone crusher for the standard cone crusher; crushing cone crusher is also called a short head cone crusher or "circular grinding.
Spring cone crusher bodies made of the three types of substantially identical, the only difference lies in the different shape of the dynamic cone and the fixed cone, so that a cross-sectional shape of the crushing chamber, the feed and out-feed particle size is not the same.
Kyc Crusher Parts Fault Repair:
1, the oil temperature is too high. Reason: bad oil quality; insufficient oil; bearing damage. Remedy: change the oil, or fuel, or replace the bearings.
2, low oil pressure after oil pump start or the indicator no oil flow. Cause: low oil temperature; the tubing clogged or the oil pump is not working properly. Elimination of the way: the heat to raise the oil temperature; repair pipelines or oil pump.
3, hydraulic oil temperature rise. Cause: Tubing or blockage of the oil groove, the safety valve malfunction. Eliminate way: down to check repairs.
4, contains a large number of fine mud and impurities in the oil. Reason: sealed dust-proof device failure; plumbing blockage or leak caused by lack of water. Eliminate way: stop re-sealed or cleaning maintenance, replacement oil.
5, Crusher strong vibration, moving cone suddenly spin faster. Reason: poor lubrication of the spindle bushing package tight; moving cone sink or spherical thrust bearing damage; tapered bushing Shangcuan activities resulting in the lack of spindle clearance. Elimination of the way: the reasons to replace damaged pieces, to overhaul oil pump and pipeline.
6, Crushing or idling produces an audible splitting sound. Reason: liner relaxation; the moving cone or fixed cone lining round impact. Eliminate way: down to check the screw fastening the zinc coating off. Damaged screws or earrings, you need to remove the adjustment ring replacement screws and earrings; zinc layer off re-cast zinc layer; Check the liner ovality necessary machining.
7, the drive shaft rotary uneven, resulting in a strong percussion pulley rotation, moving cone does not move. Cause: gear badly worn or damaged; join key damage; spindle break. Elimination of the way: the downtime to replace the gear, and the meshing clearance to meet the requirements; replace the join key; replacement spindle to strengthen the work of the removal of iron.
8, Row of ore particle size increases. Causes: severe liner wear. The way to eliminate: Adjust the port of discharge, reduce the size of the port of discharge; replacement liner.
Liming Kyc Crusher Parts:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy kyc crusher parts manufacturer capable of producing all types of kyc crusher parts, good quality and reasonable prices. Liming Heavy Industry production of kyc crusher parts is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized kyc crusher parts is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of kyc crusher parts, please contact us directly. We aim to provide you with the best kyc crusher parts and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
