Stone Grinding Machine
Author:liming Post Date:2012-9-10

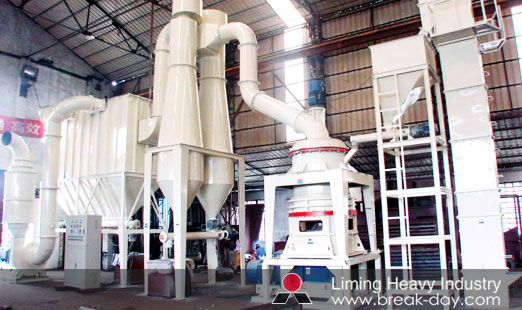

stone grinding machine
Grinding Machine Overview:
The mill is widely used in the fields of metallurgy, building materials, chemical, mining minerals such as grinding materials processing. Mill in accordance with the principles and purposes stone mill, lumber mill, pharmaceutical mill, mining mill, etc., can be applied to a variety of industry production. According to the grinding fineness of materials and discharging materials fineness, milling machines can be divided into Raymond Mill, vertical pendulum Mill, high pressure hanging roller mill, high pressure Powder Mill, Straight Centrifugal Grinder machine, overpressure trapezium mill, ring medium speed mill type.
Stone Grinding Machine Working Principle:
Stone grinding machine is developed from the traditional Raymond design process, specifically applicable to the production of deep processing of stone, Raymond Mill is called in the industry, this series of mill using a more mature milling process design, can be well applied to the production of stone processing. Liming Heavy Industry mill works: crusher crushing large lumps of raw materials to the required feed size, material will be transported to the storage hopper by bucket elevator, then evenly by the electromagnetic vibrating feeder sent to the host of the grinding cavity, blade and roller with the transfer process, the material is scooped up throwing feeding grinding roller between the roller ring, the formation of the litter layer, grinding material between the roller and grinding ring, which reached milling purposes. The powder after grinding by the fan airflow into the analysis machine for powder fineness requirements fine powder with the air flow through the pipe into the large cyclone collector, collected separately, then unloader discharge is the finished powder return air duct airflow from the upper end of the large cyclone collector inhalation blower. The powder will be undesirable leaves thrown to the outer wall and the air flow from the coarse sub due to the role of self-gravity into the grinding chamber for regrinding. The entire airflow system of the machine is closed loop, and is in the positive and negative pressure state where the circulating flow.
Stone Grinding Machine:
Common industrial mineral powder mill, Raymond mill, high pressure micro powder mill, high pressure medium speed mill, ring medium speed mill, straight centrifugal mill, ultrafine grinding, micro grinding, trapezoidal mill, such as hanging roller mill. Here Kenda introduce some common mill equipment.
Raymond Mill: Series Model 3R, 4R, 5R series product size is 0.125 mm - 0.044 mm adjust hours yield 0.6 t - 4.5 t adjust. The mill is to adapt to the medium and small mines, stone industry, building materials, metallurgy and other industries compete with closed loop milling equipment. Mohs hardness of seven humidity below 6% non-flammable, non-explosive mineral species can be processed. Finished grinding fineness uniform through screening rate of 99%, it is difficult to have other milling equipment.
High-pressure powder mill: Series Model YGM7826, YGM8327, YGM9531 finished particle size can be adjusted to 500 mesh (0.025 mm) -1250 mesh (0.01 mm) finest 2500 mesh (0.005 mm), hours yield 25 kg - -1000 kg adjust. The mill uses the principles of fluid mechanics, painstaking research, the new design can be comparable to the jet mill ultrafine grinding, so as to solve the domestic ultrafine powder high cost of jet mill problems, and high yield, energy-saving, into large feed size, more grinding pressure, the material forming a high fineness, is a high-efficiency super thin mill.
High pressure medium speed mill: Series Model YGM65 75,85,95,130,160,190 Finished size 0.613 mm -0.045 mm adjustment hour production at 0.4 tons - 35 tons adjustment. The high pressure medium speed mill for crushing barite, limestone, ceramic, slag, etc. Mohs hardness of not greater than 9.3 and humidity below 6% of non-inflammable mines, metallurgy, stone industry, building materials and other industries 280 kinds of high fine powder processing, grinding device of overlapping multi-stage sealing, good sealing performance.
Ring medium speed mill: Series Model HGM60, HGM80, HGM60, HGM100 product size is adjustable in 325 mesh -3250 mesh hour production is 350 kg - 6000 kg adjustment. HGM series three-ring medium speed micro-grinding is a fine powder and ultrafine powder processing equipment, it is mainly applied to machining brittle materials Mohs hardness < 6 non-inflammable. Continuous work, grinding cavity without rolling bearings and screws, there is no bearing its seal and wearing screw is loose. Rather destroys machinery, has broad market prospects.
Liming Stone Grinding Machine:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, stone grinding machine capable of producing the above mentioned. Liming stone grinding machine using leading technology, excellent grinding. Plan. If you need stone grinding machine and other related machinery and equipment, or want to know more information about the stone grinding machine, please contact with our online. We will provide more information and better services.
