PE-250×400
Author:liming Post Date:2012-9-2

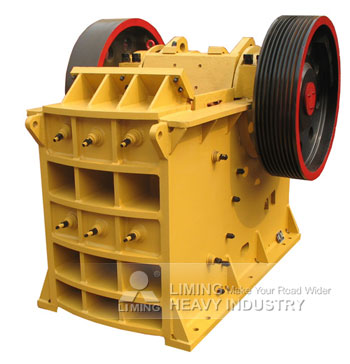

Jaw Crusher(PE-250×400):
PE-250×400
Jaw crusher can be different sizes of raw materials, broken into small pieces of uniform particles, jaw crusher either supporting and beneficiation equipment, sand and gravel equipment can also be used alone. Jaw crusher can produce the cornerstone of the road, railway ballast stone and construction sand and gravel aggregate. The Jaw Crusher divided into coarse crushing jaw crusher and crushing jaw crusher, which is commonly referred to as PE series jaw crusher and PEX series jaw crusher. Liming Heavy jaw crusher production products, has crushing, product uniform particle size, simple structure, reliable work, easy maintenance, low operation cost characteristics.
Usage of Jaw Crusher:
The jaw crusher is mainly used for medium-grained variety of ores and bulk materials, crushing, widely used in mining, metallurgy, building materials, road, railway, water conservancy and stone industry. The maximum compressive strength of the material to be broken 320MPa. The performance characteristics: large crushing ratio, uniform particle size, simple structure, reliable operation, easy maintenance, low operating costs. How it works: motor through pulley drives the eccentric shaft rotation, so that the movable jaw cycle close to leave the fixed jaw, which materials have squeezed, rubbing, grinding, such as multiple broken materials from large to small, gradually whereabouts until discharged from the discharge port.
Jaw Crusher Working Principle:
Motor through the belt so that the rotation of the eccentric shaft, the up and down movement of the vertical rod that is, when the vertical link up, driven by two brackets gradually stretched flat bracket to force the movable jaw to the fixed jaw forward, crushing chamber (ie composed of fixed jaw plate and moving jaw space) in the ore being squeezed, splitting, fold flexor and broken. Vertical link-down movement, toggle plate and movable jaw plate, by the force of the springs and tie rods to the back at the port of discharge increase, the ore is broken thus discharged. Visible jaw crusher is intermittently broken ore. The eccentric shaft of a turn each half cycle for crushing and subsequent half cycle for the row of ore. So it is compared with other continuous crushing equipment, power consumption, greater mechanical efficiency is lower.
Liming PE-250 × 400:
PE250 × 400 is a small cracker with Overall Dimensions 1150mm x 1275mm × 1240mm, Weight 2.8t, Max. Feeding Size 200mm, Adjustable Discharge opening 20mm-60mm. Motor Power 15kW Capacity 5-20t / h. To meet the needs of small broken.
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, we also have PE600 × 900 PE1200 × 1500 Model cracker to meet the needs of large-scale production, welcome letters and telegrams to buy.
