Photos of Jaw Crushers in Opperation
Author:liming Post Date:2012-8-28
Jaw Crushers Description:
Jaw crusher in the huge stones crushed into small stones, the first crusher is usually referred to as a "master" crusher. The longest history, but also the most solid crusher jaw crusher. Jaw crusher feeding the material from the top of the entrance into the crushing chamber containing jaw teeth. Jaw teeth with great force the material to the top of the wall will be broken into smaller stones. Support the jaw movement is an eccentric shaft, this axis throughout the body architecture. The eccentric motion is usually generated by a flywheel fixed on the shaft ends. Flywheel and often eccentric support bearing spherical roller bearings, bearing extremely harsh working environment. The bearings must withstand tremendous impact load, abrasive sewage and high temperature. Although this work is extremely harsh environment, jaw crusher still need to work very reliably, which is to ensure the efficiency of the production of a key ring.
The jaw crusher is currently the most widely used crusher with crushing ratio, product size is uniform, low operating cost, simple structure, easy maintenance. In mining, building materials and infrastructure sector is mainly used as the primary crusher and crusher. In accordance with the size of the feed mouth width, divided into large, medium and small three. Mining, metallurgy, building materials, road, railway, water conservancy and stone widely used in a variety of industries.
Photos of Jaw Crushers in opperation
Opperation Process:

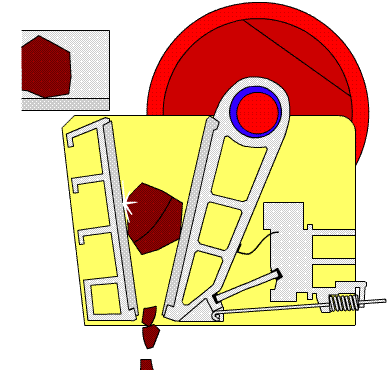

Structure of the jaw crusher frame, eccentric shaft, big pulley, flywheel, moving jaw, side guard plate, toggle plate, toggle plate back seat, adjust gap screw, reset spring, fixed jaw plate and movable jaw plate. , which brackets also play a role as insurance.
Jaw crusher way for music moving extrusion type, motor-driven belt and pulley, through the eccentric shaft to make the movable jaw up and down movement, when the movable jaw rises larger angle between toggle plate and moving jaw, thus promoting the movable jaw plate close to the fixed jaw plate, at the same time the material is squeezed, rubbing, grinding, such as multiple broken; When the movable jaw down, the angle between toggle plate and moving jaw smaller, movable jaw plate trolley spring left jaw board, crushed material is discharged from the crushing chamber mouth cyclical With the motor continuously rotating crusher mobile jaw crushing and nesting to achieve mass production. Liming Heavy production of jaw crusher, crushing, product size uniform, simple structure, reliable operation, easy maintenance, low operating cost characteristics. Its product specification is complete, the device of choice for primary crushing.
Liming Jaw Crushers:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment in China, capable of producing different types of Jaw Crushers. The Liming Jaw Crushers excellent crushing machine. If you need Jaw Crushers or similar products, please contact us. We will provide more Photos of Jaw Crushers in opperation
