Trapezium Working Surface Area
Author:liming Post Date:2012-9-9
trapezium working surface area

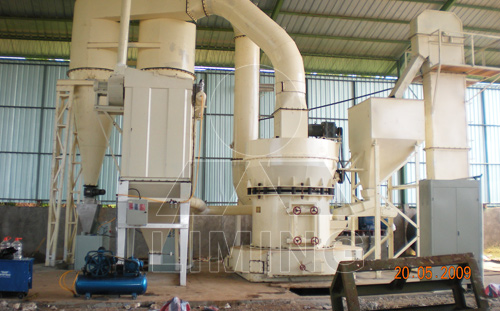

Super Pressure Trapezium Mill:
Super Pressure Trapezium Mill can improve the grinding efficiency ladder roller and grinding ring. Aircraft will be grinding roller and grinding ring designed stepped to reduce the rate of decline into the material between the roller and grinding ring, thus prolonging the time of compacted material, improve the crushing effect; using can play balance supercharger The role of the pressurized spring and can play smooth damping effect of elastic links. The machine uses a lever principle, the horizontally symmetrical roller assembly with spring rod connected together, when the roller assembly top placed large pieces of material, and the radial force can be passed to the plane of symmetry through spring rod roller assembly to balance that, under these conditions, the device's overall stress points and other products increased compared to about 40%; the elastic coupling devices reduce vibration and noise, to avoid resonance.
Super Pressure Trapezium Mill with traditional vertical milling machine compared to an unparalleled advantage, the application of a number of national Mill patented technology, innovative design, reasonable structure, small footprint, low power consumption, operating life long, and wearing parts, low-cost, and cost-effective. The technical performance have reached the international advanced level, compared with the Raymond mill, ball mill, high pressure hanging roller mill, and other traditional mill classifiers leaves the patented product makes the end of the housing gap adjustment convenient, fast, and greatly improve the accuracy of the finished product; the classifier impeller which is equipped with can improve the accuracy of the classifier and the high density of the product. Practice shows that in the case of the speed remains unchanged, increase the density of the blade can improve the fineness of the finished product, in other words, in the case of do not need to change the finished fineness, high density impeller comparable low density impeller speed, low, reducing the resistance to airflow, The finished production increased by more than 50% under the same power.
Trapezium Mill Application Areas:
Super Pressure Trapezium Mill has been widely used in electric power, mining, metallurgy, stone industry, iron and steel, building materials, coal and other industries, resulting in huge economic and social benefits. Mainly used in mining, building materials, stone industry, metallurgy, thermal power and coal industries grinding Mohs hardness below 9.3 and humidity below 6% non-flammable, non-explosive mineral materials, finished product fineness can be 30 - 400 mesh of arbitrary regulation, such as cement (raw clinker), quartz, feldspar, calcite, dolomite, graphite, fluorite, wollastonite, phosphate rock, calcium magnesium phosphate, coal, gangue, slag, zircon sand , more than 1,000 kinds of materials such as talc, granite, feldspar, marble, barite, ceramics, glass grinding process. Overpressure trapezium mill take full account of the needs of desulfurization milling in the design, the more perfect match with the desulfurization equipment, so as to improve the desulfurization efficiency, and therefore become the preferred equipment of desulfurization milling at home and abroad.
Trapezium Mill Working Principle:
Host through the the reducer drive center axis of rotation, the upper end of the shaft coupling plum frame shelves equipped with the mill roller means and forming a swing fulcrum. The roller devices not only around the central axis of rotation, but also around the grinding ring revolves, grinding roller frictional effects and rotation. Plum frame equipped with a blade system, its position at the lower end of the grinding rollers, shovel knife and grinding roller with transfer process materials toss between the feeding roller mill ring, the formation of the litter layer, the material layer by grinding roller rotation produce an outward centrifugal force (i.e., pressing force) of the material crushed thereby achieve Pulverizing purposes.
Trapezium Working Surface Area:
Area of a trapezium = (a + b) * h / 2 where a and b are the two parallel sides and h is the perpendicular distance between them. According to this company, we can easily calculate the trapezium working surface area, and thus learned trapezium mill theoretically runtime consumption of materials and production, in order to guide the production process. Necessary parameters and computing is required prior to the installation and commissioning trapezium mill. Only learned trapezium working surface area, in order to master the the trapezium mill running, in order to let the trapezoid grinding operation, so as to ensure the safety and monitoring of health.
Liming Trapezium Mill:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, the trapezium mill capable of producing the above mentioned. The trapezium mill Liming Heavy Industry leading technology, excellent grinding machine. If trapezium mill and related machinery and equipment you need or want to know more information trapezium mill, please contact with our online staff. We will provide more information and better services.
