Ultrafine Powder Making Machine
Author:liming Post Date:2012-10-11

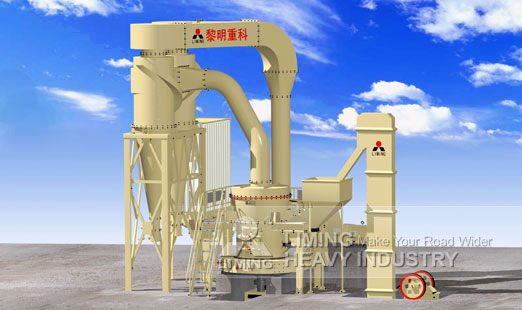

ultrafine powder making machine
Ultrafine Powder Making Machine:
T130X ultrafine powder making machine with innovative design is a new-type grinding machine evolving from the original patented product - TGM Super Pressure Trapezium Mill based on market research, feedbacks and suggestions of customers both at home and abroad. It's optimized on the foundation of TGM Super Pressure Trapezium Mill in function and structure, coming into being its own unique characteristics:
1, The main frame and the base are completely soft-linked rather than rigid-contacted. It avoids the vibration from the chamber transferring to the main frame and the classifier, which improving the precision of the classifier.
2, The base are made of anti-crack nodular cast iron which boasts the strength of cast steel, the anti-vibration of cast iron and good impact resistance.
3, It adopts the reducer that simulates German Flender. Technological advantage of professional reducer manufacturers are made full use of to improve machine stability.Reducer and motor are connected by V-belt which is conducive to overload protection.
4, The main frame and reducer are connected by pin coupling with elastic sleeve to ward off the breaking of nylon pin, which improves the reliability of the whole equippment.
5, The classifier adopts high density impeller which can improve the fineness and capacity. Practice shows that in the case of constant speed, increasing the density of leaves can increase the fineness of the finished product.In other words, in the condition of same fineness, the high-density impeller rotates slower than the low-density one, which reduces the air resistance and increases production meanwhile.
6, The classifier adopts frequency control of motor speed with the characteristics of energy-saving, precison, good process control mobility and high degree of automation.
7, Bypass powder collector with a dust isolation chamber make more dust go into the bottom of cyclone by the bypass system to avoid the dust escaping from air vents. Compared with general powder collector, it has the character of low pressure loss and high efficiency, particularly being conducive to collect the powder particles which is difficult to collect.
8, Same resistance arrangement avoids difference in power from two powder collector, which increases the efficiency, capacity and decreases internal circulation.
9, The discharges of the collector and dust remover are in the same line which is convenient for powder collecting and packing and reduces the amount of work.
10, The maintenance platform makes maintenance work safer and more convenient.
Usage of Ultrafine Powder Making Machine:
The machine is mainly applied in metallurgy, building materials, chemical, mining and minerals such as grinding materials processing, grinding feldspar, calcite, talc, barite, fluorite, rare earth, marble, ceramics, bauxite, manganese, iron ore, copper, rock phosphate, iron oxide red, slag, slag, activated carbon, dolomite, granite, iron oxide yellow, bean cake, fertilizer, compound fertilizer, fly ash, bituminous coal, coking coal, lignite, Ling U.S. sand, gold, red mud, clay, kaolin, coke, coal gangue, porcelain clay, kyanite, fluorspar, bentonite, medical stone rhyolite, muddy green rock, leaf wax rock, shale, purple rock, Diego rock, basalt, gypsum, graphite, insulation materials, humidity below 6% non-flammable, non-explosive mineral materials processing.
Composition and Working Principle:
The T130X ultrafine powder making machine mainly by the host, reducer, analysis, maintenance platform, blower, Bypass powder collector, electric control cabinet. Auxiliary jaw crusher, bucket elevator, electromagnetic vibrating feeder, storage silos.
When it works, large block material crushing by jaw crusher to the desired particle size, the materials will be sent to hoist storage hopper, then by vibrating feeder evenly quantitative material is continuously fed into the grinding chamber grinding, grinding after powders, the wind machine air rising, grading analysis machine, bypass powder collector with the airflow through the pipe into the collected separately meet the fineness of the powder, the powder valve discharge shall be finished powder. Return air duct suction centrifugal induced draft fan airflow from the upper end of the bypass powder collector, the entire air flow system of the machine is negative pressure closed loop to ensure the environmental health of the production site.
Liming Ultrafine Powder Making Machine:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are ong of the trusted ultrafine powder making machine manufactures, which are able to produce various types of ultrafine powder making machine, excellent quality and reasonable prices. I produced ultrafine powder making machine set of similar products at home and abroad, the successful experience of painstaking work out an efficient energy-saving crushing equipment. Large and medium-sized of ultrafine powder making machine is one of the leading products of the company, especially in the design and production of large crusher mill, at the absolute leading level at home and abroad. If it is you need of ultrafine powder making machine and its related machinery and equipment, or need information, please contact our online staff. We will provide more information and better services.
