Ball Mill Optimization
Author:liming Post Date:2013-11-5
Ball Mill Optimization

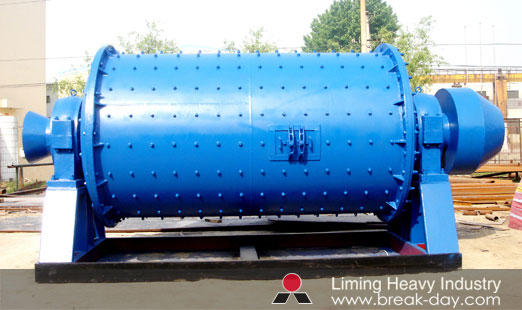

Ball Mill Profile:
The ball mill is the material to be broken, and then to smash the key equipment.It is widely used in cement, silicate products, new building materials, refractory materials, fertilizer, black and non-ferrous metal processing and glass ceramics production industry, on a variety of ores and other grind-able materials dry or wet grinding. Suitable for ball mill grinding various ores and other materials, are widely used in mineral processing, building materials and stone industries, and can be divided into dry and wet the two grinding of ways. According to the different ways of discharge can be divided into lattice type and overflow type two.
Working Principle:
The ball mill is a horizontal cylinder, expected out of the hollow shaft and the grinding head parts, barrel length cylinder, barrel equipped with a grinding body, cylinder steel plate manufacturing, fixed steel liner and cylinder grinding bodygenerally steel balls, to press different diameter and a certain percentage of loaded barrel, grinding body can also be used to steel segment.
Be selected according to the granularity of the abrasive material, and material from the ball mill feed end of the hollow shaft into the cylinder body, ball mill rotating cylinder grinding body due to inertia and centrifugal force, the friction force, it posts near the cylinder liner cylinder away, was taken to a certain height when being thrown, due to its own gravity, the whereabouts of the grinding body like a projectile to the cylinder body materials crushed.
Material from the feed device into the compound empty shaft spiral evenly into the mill first warehouse, the warehouse there are ladder liner or corrugated liner, built with different specifications steel ball, rotating cylinder produces centrifugal force to the ball a certain height after the fall, the thump and grind the material. The material in the first warehouse, coarse grinding by monolayer partition panel into the second position, the warehouse lined with flat lining with steel balls, the material further grinding. Powder discharged through the discharge grate plate to complete the grinding operation.
Cylinder in the process of turning, grinding body slipping phenomenon, to the material to the grinding action in the slipping process, in order to effectively use the abrasive material granularity teach general 20 mesh pulverized when the mill body cylinder with compartment plate separated Sec dual positions become material into the first positions when they were crushed by the steel ball, the material into the second position when the steel end materials grinding finely ground material from the discharge end of the hollow qualified shaft discharge small particles of feed material pulverized when, as sand the 2nd slag, coarse fly ash, mill shell may from time to set up partitions, a single silo mill grinding volume of the steel segment.
Ball Mill Structure:
Ball mill to feeding part, discharging part, turning part, transmission part (reducer, small transmission gear, motor, electric control), the main part. Hollow axis adopts the cast steel, lined with removable, rotary gear hobbing by casting process, the body inlaid cylinder liner wear, has good abrasion resistance. The machine running smoothly, work reliably.
Ball Mill in China:
China is a big country, and could produce ball mill every year, a large number of quality product is produced and sold around the world. The quality of ball mill produced in China is guaranteed, and the price is relatively cheap. It is the best choice to buy ball mill in China. But choose to buy ball mill can not be blindly freeloaders, they should have chosen a large formal ball mill manufacturer. So to protect the interests of buyers, and can provide the necessary technical support and maintenance services.
Liming Ball Mill Optimization:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy ball mill manufacturer capable of producing all types of ball mill, good quality and reasonable prices. Liming Heavy Industry production of ball mill is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized ball mill is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of ball mill optimization, please contact us directly. We aim to provide you with the best ball mill and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
