Layout of Stone Crusher Plant
Author:liming Post Date:2013-11-21

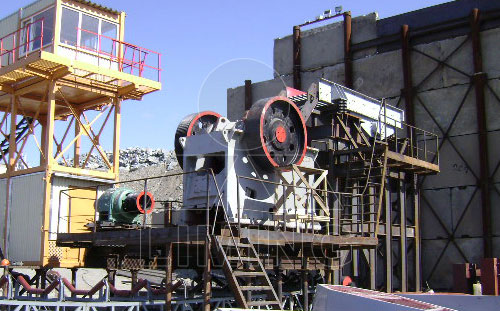

Layout of Stone Crusher Plant
Stone Crusher Plant Species:
The stone crusher plant common two ways: on the move type under acting. On the dynamic type stone crusher plant constant width of the port of discharge, the work is often clogged, affecting the normal work, so now been eliminated. Under dynamic type stone crusher plant concentrator. It is constituted by the following main components: a fixed jaw and the front wall of the rack, suspended on the shaft of the movable jaw, the eccentric shaft, the vertical rod, the toggle plate, the drive flywheel. Two jaw board the liner, with a spring lever, elbow board seat, adjust the block.
Production of Less Than Factory Standard:
Stone crusher plant production to reach the factory standard exclusion method:
1, replace or increase the crusher;
2, replacement motor wiring;
3, nesting population adjustment to the instructions provided for nominal discharge opening and increased crusher used for crushing.
Stone Crusher Plant Working Principle:
The structure of the stone crusher plant frame, eccentric shaft, big pulley, flywheel, moving jaw, side guard plate, toggle plate, toggle plate back seat, adjust gap screw, reset spring, fixed jaw plate and activities jaw, which brackets also play a role as insurance. The series stone crusher plant way for music moving extrusion type, motor-driven belt and pulley, the up and down movement of the movable jaw by the eccentric shaft when the movable jaw rises, the angle between toggle plate and moving jaw becomes larger, thus promoting the movable jaw plate close to the fixed jaw plate, at the same time the material is squeezed, rubbing, grinding, such as multiple broken; when the movable jaw down, the angle between toggle plate and moving jaw smaller, movable jaw plate trolley leave spring fixed jaw plate, the crushed material is discharged from the crushing chamber mouth With the motor continuously rotating broken motor Hubei periodically crushed and nesting to achieve mass production.
Stone Crusher Plant Application:
Stone crusher plant for cement, coal preparation, power generation and building materials, to adapt to the crushing of medium hardness and brittle materials, such as limestone, coal. The maximum compressive strength of not more than 1500kg/cm2.
Liming Layout of Stone Crusher Plant:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy stone crusher plant manufacturer capable of producing all types of stone crusher plant, good quality and reasonable prices. Liming Heavy Industry production of stone crusher plant is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized stone crusher plant is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of layout of stone crusher plant, please contact us directly. We aim to provide you with the best stone crusher plant and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
