What Would Be The Cost of A Cryogenic Grinding Mill?
Author:liming Post Date:2013-1-11
What Would Be The Cost of a Cryogenic Grinding Mill?

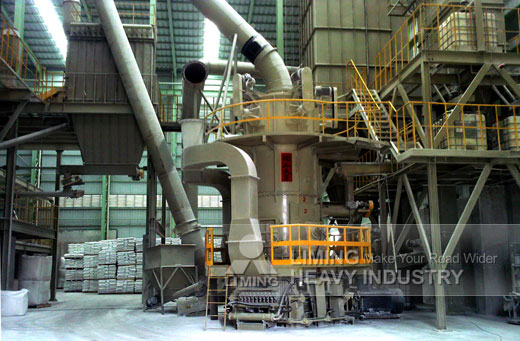

Cryogenic Grinding Mill Introduction:
Vertical milling machine is widely used in cement chemicals, coal, electricity and other departments mill equipment. Has a small footprint, low energy consumption, low noise, the process is simple, compact layout, centralized pieces, drying, grinding, the powder is one of the advantages of modern cement raw material grinding device of choice. The world's earliest developed vertical mill is the Federal Republic of Germany Loesche (Loesche), the 1925 has a more mature design. After continuous development and improvement, the largest LM63.4 production of 840t / h, the disc diameter of 6.3m, the installed power of 5600kW, 4 grinding rollers.
Cryogenic Grinding Mill Applications:
Vertical milling machine for glass fiber industry pyrophyllite powder the grinding fineness high yield; gangue powder production powder production in the coal industry; powder for the production of the large production of a variety of stone raw materials for the stone industry; Non-metallic Minerals Industryvariety of low, middle and high hardness hundreds of massive ore powder production preparation; hundred kinds of industries of various materials production powder preparation. Its unique features to reduce running costs and to become the best choice for equipment.
Cryogenic Grinding Mill Working Principle:
Motor through reducer drive disc rotation, the hot air from the inlet into the vertical mill, the material falls from the feed opening disc central centrifugal force, its material the millstones edge from the millstone central to moving on after disc annular groovewhen subjected to the grinding rollers of the roller compacted and crushed, the crushed material to continue to move to the refiner disk edge, until it is taken away by the air ring at the gas stream, while the large particulate material falling to the disk on continued pulverization. The flow of material through the upper part of the separator, the effect of the guide vanes, the coarse material from the cone bucket falls millstone, powder together with the airflow in the grinding, and collected by the dust collector system, a powder was collected i.e. mill to grind the product for the legislature. The material in contact with the gas in the housing during the drying, to achieve the desired dry product humidity. By adjusting the separator-oriented point of view of the fan blade (small vertical mill is not adjustable) and the rotational speed of the rotor of the separator, the products required thickness can be achieved.
Cryogenic Grinding Mill Features:
Vertical milling machine compared with other grinding equipment, has the following characteristics:
1, high grinding efficiency, using the the material bed squeezed crushed principle, by the RCC, shear, impact the role of material in the mill. Mill airflow finely ground materials in a timely manner to bring out, to avoid excessive grinding, the material stays in the mill time is generally 2-4rain, for 165% of the ball mill grinding efficiency, power consumption can be reduced by about 30%.
2, high drying efficiency, the hot air from the annular slit spray people, high wind speed, large ventilation cross-section mill, small resistance, using the preheater exhaust gas can be dried to moisture content of 8% of the material, if hot stove can be drying aqueous 15% to 20% of the materials.
3, people grinding materials a large size, generally up to 5% of the diameter of the grinding rollers, the large mill feed size of up to 150 ~~ 200mm, equipment and technology superior performance, single output, high rate of operation of equipment, metal wear than ball mill.
4, grinding material adaptable, can be used for grinding a variety of raw materials and fuels, such as limestone, sandstone (Si02> 90%), coal, cement clinker, blast furnace slag, etc.. Regardless of their grindability, abrasiveness how, through internal restructuring of the mill and reasonable operation, can produce different fineness, different than the surface area of qualified products.
5, the process is simple, compact layout, low cost of routine maintenance, can be open-air setting, infrastructure investment is about 70% of the ball mill.
6, the overall tightness small dust, low noise, and superior environment.
7, finished product quality control is fast, flexible adjustment of product, easy operation intelligent, automated.
8, shortcomings of vertical mill is not suitable for the grinding of hard and abrasive materials, wear parts expensive than ball mill, ball mill, hoist it replaced, the powder equipment compared to the total amount of maintenance is still seems simple maintenance, easy and workload.
What Would Be the Cost of a Cryogenic Grinding Mill?
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy cryogenic grinding mill manufacturer capable of producing all types of cryogenic grinding mill, good quality and reasonable prices. Liming Heavy Industry production of cryogenic grinding mill is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized cryogenic grinding mill is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of what would be the cost of a cryogenic grinding mill?, please contact us directly. We aim to provide you with the best cryogenic grinding mill and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
