Manufactuer of Ball Mill in Jaipur
Author:liming Post Date:2013-11-28

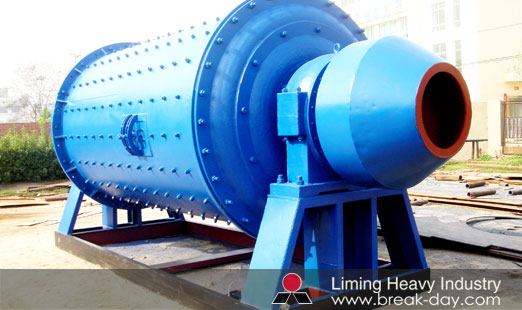

Manufactuer of Ball Mill in Jaipur
Ball Mill Profile:
The ball mill is the material to be broken, and then to smash the key equipment. Mill is widely used in the industrial production in one of the high-fine grinding machinery, there are many types, such as a tube-type ball mill, a ball mill, ultrafine laminate mill, hand ball mill, horizontal ball mill, ball mill, the pad, energy saving ball mill, the overflow type ball mill, ceramic ball grid ball mill. Suitable for ball mill grinding various ores and other materials, are widely used in mineral processing, building materials and stone industries, and can be divided into dry and wet the two grinding of ways. According to the different ways of discharge can be divided into lattice type and overflow type two. Cylinder shape can be divided into a short tube ball mill, long-barreled ball mill, tube mill and cone mill four kinds.
Ball Mill Structure:
Ball mill to feeding part, discharging part, turning part, transmission part (reducer, small transmission gear, motor, electric control), the main part. Hollow axis adopts the cast steel, lined with removable, rotary gear hobbing by casting process, the body inlaid cylinder liner wear, has good abrasion resistance. The machine running smoothly, work reliably.
Ball mill host, including cylinder, drum is equipped with wear-resistant materials made lining, carrying cylinder and maintain its rotating bearing, but also drive parts, such as motors, and transmission gears, pulleys, V-belt.
About called parts of the blade, generally not a major component, the feed inlet in the feed end of the member within the inner helix can be called the inner helical blades, the inner helix can also be called the inner helical vane in the discharge end of the member within the spout.
Also in the discharge end of the auxiliary equipment, screw conveyor, the device will be called the spiral blade parts, but strictly speaking, it has not a ball mill parts.
Dry ball mill and wet lattice-type ball mill can be selected according to the material and the ways of discharge. Energy-saving ball mill, double row self-aligning spherical roller bearings, the running resistance of small, energy-saving effect is remarkable. The cylindrical part, the discharge end of the original cylinder increase over a conical cylinder, both to increase the effective volume of the mill, and also allows more rational allocation barrel medium. The products are widely used in non-ferrous metals, ferrous metals, non-metallic mineral processing field and stone industry, building materials industry for material grinding.
Ball Mill Working Principle:
The ball mill is a horizontal cylinder, expected out of the hollow shaft and the grinding head parts, barrel length cylinder, barrel equipped with a grinding body, cylinder steel plate manufacturing, fixed steel liner and cylinder grinding bodygenerally steel balls, to press different diameter and a certain percentage of loaded barrel, grinding body can also be used to steel segment.
Be selected according to the granularity of the abrasive material, and material from the ball mill feed end of the hollow shaft into the cylinder body, ball mill rotating cylinder grinding body due to inertia and centrifugal force, the friction force, it posts near the cylinder liner cylinder away, was taken to a certain height when being thrown, due to its own gravity, the whereabouts of the grinding body like a projectile to the cylinder body materials crushed.
Material from the feed device into the compound empty shaft spiral evenly into the mill first warehouse, the warehouse there are ladder liner or corrugated liner, built with different specifications steel ball, rotating cylinder produces centrifugal force to the ball a certain height after the fall, the thump and grind the material. The material in the first warehouse, coarse grinding by monolayer partition panel into the second position, the warehouse lined with flat lining with steel balls, the material further grinding. Powder discharged through the discharge grate plate to complete the grinding operation.
Cylinder in the process of turning, grinding body slipping phenomenon, to the material to the grinding action in the slipping process, in order to effectively use the abrasive material granularity teach general 20 mesh pulverized when the mill body cylinder with compartment plate separated Sec dual positions become material into the first positions when they were crushed by the steel ball, the material into the second position when the steel end materials grinding finely ground material from the discharge end of the hollow qualified shaft discharge small particles of feed material pulverized when, as sand the 2nd slag, coarse fly ash, mill shell may from time to set up partitions, a single silo mill grinding volume of the steel segment.
Liming Manufactuer of Ball Mill in Jaipur:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy ball mill manufacturer capable of producing all types of ball mill, good quality and reasonable prices. Liming Heavy Industry production of ball mill is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized ball mill is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of manufactuer of ball mill in Jaipur, please contact us directly. We aim to provide you with the best ball mill and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
