Micro Powder Grinding Mill
Author:liming Post Date:2013-12-13

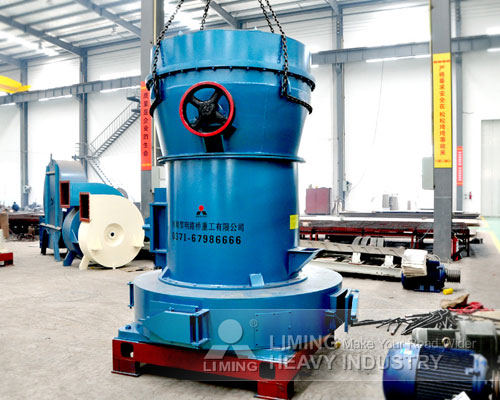

Micro Powder Grinding Mill
Micro Powder Grinding Mill Introduction:
Micro powder grinding mill is independently developed a new mechanical grinding equipment, its low energy consumption, set centrifugal crushing, impact crushing, squeezing crushed in an energy saving 40 to 50% higher than other types of mechanical grinder. The high fineness: with the grading system from Split, the product fineness ≥ 2500 mesh, feeding, feed size ≤ 50mm material only the a coarse broken equipment. Low abrasion, crushing part of the wearing parts the composite wear new material, long service life, pollution-free processing Mohs hardness ≤ 5 material.
Micro Powder Grinding Mill Working Principle:
Large block of raw materials to the required feed size jaw crusher crushing machine materials transported to storage silos, and then by the electromagnetic vibrating feeder evenly sent to the host of grinding cavity, shovel bucket elevatorknife and grinding roller with the transfer process, the material is scooped up throwing feeding grinding roller between the roller ring, the formation of the litter layer, the material between the roller and grinding ring grinding, and thus achieve pulverizing purpose. The powder after grinding by the fan airflow into the analysis machine for powder fineness requirements fine powder with the air flow through the pipe into the large cyclone collector, collected separately, then unloader discharge is the finished powder return air duct airflow from the upper end of the large cyclone collector inhalation blower. The powder will be undesirable leaves thrown to the outer wall and the air flow from the coarse sub due to the role of self-gravity into the grinding chamber for regrinding. The entire airflow system of the machine is closed loop, and is in the positive and negative pressure state where the circulating flow.
Advantages and Trends:
With the continuous development of the milling machinery industry, micro powder grinding mill as the the powder industry grinding equipment. High reliability, energy-saving, precision, automation is the inevitable trend of development.
Micro powder grinding mill production and R & D experience, in recent years, Raymond is widely used in the fields of metallurgy, building materials, chemical, mining minerals such as grinding materials processing, suitable for processing Mohs hardness of seven, humidity below 6% a variety of non-explosive minerals such as gypsum, talc, calcite, limestone, marble, feldspar, barite, dolomite, granite, kaolin, bentonite, medical stone, bauxite, iron oxide red, iron mine, such as, product fineness of 613 microns to 440 microns (0.613 mm -0.44 mm), through the analysis of machine and fan together, to meet the different requirements of users.
Experts believe that, micro powder grinding mill powder industry mainly to the high reliability, the development of energy-saving, accurate, automatic condition monitoring and automatic control direction. Using SCR power supply, AC variable speed, centralized grease lubrication, shock absorption, and other measures, and condition monitoring and microcomputer automatic control device. Which high reliability through mechanical principle of rationalization study reinforced grinding ring under the wear resistance of the gland, etc., to improve the machine in a continuous state bearing lubrication before. Automatic condition monitoring and automation control need increased Raymond inside the the high intelligent electronic control system, out of the automatic control materials, grinding, and quantitative. The operator need only in the operating room, the button control. Improve the precision grinding of materials needed to enhance the accuracy of the analysis machine.
Micro Powder Grinding Mill Installation:
Install micro powder grinding mill run the site have not been installed, you should take good care of the exposed surfaces are coated with anti-rust grease, and avoid the sun and rain, to prevent the body rust water, To establish maintenance system. Plant and foundation should have enough height and installation location of the installed base size of the chart according to Raymond, Raymond should be based on high-standard cement and shall be buried reinforced before being placed foundation, and I buried conduit or cable trench. After pouring the cement foundation, there must be a 15-day maintenance period. Should be 2 to 3 tons with a lifting tool for Raymond installation maintenance. Raymond from the factory to use over six months, to host the central axis of the system, the transmission roller device, and analysis of oil pools should be cleaned inspection, cleaning checked respond to the various components add sufficient lubricant.
Liming Micro Powder Grinding Mill:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy micro powder grinding mill manufacturer capable of producing all types of micro powder grinding mill, good quality and reasonable prices. Liming Heavy Industry production of micro powder grinding mill is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized micro powder grinding mill is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of micro powder grinding mill, please contact us directly. We aim to provide you with the best micro powder grinding mill and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
