Raymond Pulverizer
Author:liming Post Date:2013-1-18

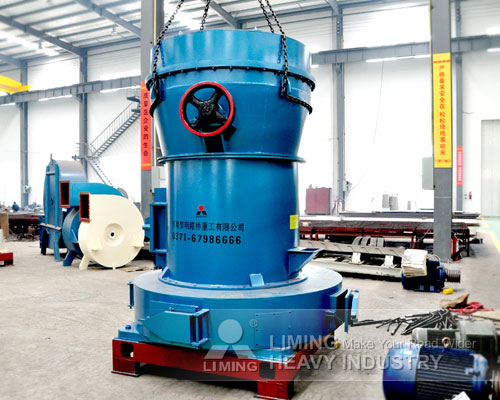

Raymond Pulverizer
Raymond Pulverizer Work Process:
Raymond pulverizer the whole structure by the host, analysis machine, plumbing fixtures, blower, can be equipped with broken machines, elevator, electromagnetic vibrating feeder, electric control motor and other components according to user needs.
The materials are crushed to the desired particle size, material to hoist storage hopper, vibrating feeder will even feed a continuous fed into the grinding chamber, rotates, centrifugal force, grinding roller swings out, pressed grinding ring, shovel blade materials sent between the roller and grinding ring rolling mill roll to smash purpose.
Material after grinding the powder-blower circulating air is brought into the analysis machine sorting, fine through coarse material to regrinding, qualified powder into the air discharge finished cyclone powder, stone tube shall be finished.
Materials in the grinding room was grinding some moisture, grinding heat, moisture evaporation, and the whole pipe interface is not tight, the outside air is inhaled, the circulation increased pressure to ensure that the mill work in the vacuum state , the increase in gas flow through the I wind tube into the dust collector, into the atmosphere after being purified.
Performance Characteristics:
Raymond pulverizer, we produce the product features, needle-like material can be crushed, crushing process temperature rise, suitable for heat-sensitive materials crushed on sintering reunion ultrafine materials scattered jobs, granular recovery rate of 100%particles having a shaping function, improve the bulk density, and can crush the material of the fibrous tissue, and also having a drying function. Its production of negative pressure, no dust pollution, environmental quality, and high degree of automation, stability, easy to operate, can reduce the cost of the investment, the companies have chosen the best milling equipment.
Raymond Pulverizer Application:
Raymond pulverizer is widely applicable to the barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glassinsulation materials Mohs hardness of not more than 7 and humidity below 6% of non-flammable mineral, chemical, construction and other industries more than 300 kinds of materials for high fine powder processing.
Raymond Pulverizer Advantages and Trends:
With the continuous development of the milling machinery industry, raymond pulverizer as the the powder industry grinding equipment. High reliability, energy-saving, precision, automation is the inevitable trend of development.
Raymond pulverizer production and R & D experience, in recent years, Raymond is widely used in the fields of metallurgy, building materials, chemical, mining minerals such as grinding materials processing, suitable for processing Mohs hardness of seven, humidity below 6% a variety of non-explosive minerals such as gypsum, talc, calcite, limestone, marble, feldspar, barite, dolomite, granite, kaolin, bentonite, medical stone, bauxite, iron oxide red, iron mine, such as, product fineness of 613 microns to 440 microns (0.613 mm -0.44 mm), through the analysis of machine and fan together, to meet the different requirements of users.
Experts believe that, raymond pulverizer powder industry mainly to the high reliability, the development of energy-saving, accurate, automatic condition monitoring and automatic control direction. Using SCR power supply, AC variable speed, centralized grease lubrication, shock absorption, and other measures, and condition monitoring and microcomputer automatic control device. Which high reliability through mechanical principle of rationalization study reinforced grinding ring under the wear resistance of the gland, etc., to improve the machine in a continuous state bearing lubrication before. Automatic condition monitoring and automation control need increased Raymond inside the the high intelligent electronic control system, out of the automatic control materials, grinding, and quantitative. The operator need only in the operating room, the button control. Improve the precision grinding of materials needed to enhance the accuracy of the analysis machine.
Raymond Pulverizer Structural Features:
1, the three-dimensional structure, small footprint, sets strong from the block not expect the finished powder independence its own production system.
2, refined powder fineness of uniform through screening rate of 99%, it is difficult to have other milling equipment.
3, host transmission with sealed gear box and pulley transmission smooth, reliable operation.
4, important parts are made of high-quality steel, wear-resistant parts are made of high-performance wear-resistant materials, the whole high wear resistance, reliable operation.
5, the electrical system with centralized control, milling workshop basic unmanned operation, and maintenance.
Liming Raymond Pulverizer:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy raymond pulverizer manufacturer capable of producing all types of raymond pulverizer, good quality and reasonable prices. Liming Heavy Industry production of raymond pulverizer is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized raymond pulverizer is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of raymond pulverizer, please contact us directly. We aim to provide you with the best raymond pulverizer and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
