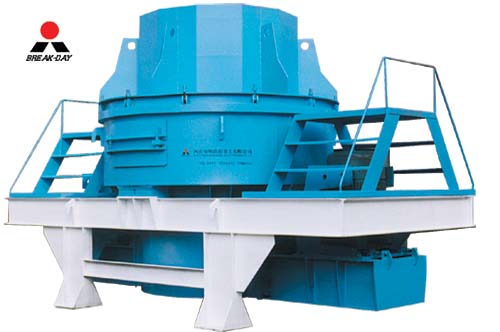

Vertical Impact Crusher
Vertical Impact Crusher Introduction:
This kind of equipment is of high-power and high-efficiency, which is based on several years of hard work and studying on mechanical equipment. It absorbed the advanced techniques of the same product of the liming Company of America and is also on behalf of the international level. It plays an important role in crushing minerals into sands.
Vertical Impact Crusher Application:
This product is widely used for making various kinds of mine, such as cement, fire-proof materials, aluminum soil, emery, glass raw materials, building sand, stone materials, and metallurgical slag. It is especially efficient to crush harder and causticity materials, such as carborundum, emery, and magnesium sand.
Working Principle:
Vertical impact crusher into the hopper, sub-feeders, eddy crushing chamber, impeller body, spindle assembly, the base transmission and motor consists of seven parts, stone rock principle, more materials for their own collision broken.
Material from the feed hopper into the vertical impact crusher, the material is divided into two parts by the sub-feeder, and in part by the middle of the sub-feeder into the high-speed rotation of the impeller, the impeller being rapidly accelerated acceleration of up to several hundred times the acceleration of gravity , then the speed of 60-70 m / s from the impeller three runner uniform projectile out, first of all with broken by the impact of the part of the sub-feeder four weeks since the closing falling materials, and with the impact of the whirl cavity lining materials on the material lining rebound, oblique impact to the top of the whirl chamber, reflection, deflection downward movement of the collision with emitted from the impeller material again, such a material eddy the crushing cavity by twice as well as several chances to impact, friction and grinding crushing effect, finally lost the energy of the material discharged from the crushing cavity. Throughout the crushing process, the materials of mutual self-impact crusher, not in direct contact with the metal components, but with the material lining shock, friction and crushing, thus greatly reducing the wear and tear of equipment, extend the life of the machinery. The same time, the whirl chamber clever internal airflow self-circulation, but also to maximize the elimination of dust pollution.
Performance Characteristics:
The structure is simple and reasonable, since the strike crusher, ultra-low cost of use; unique bearing installation and advanced spindle design, the machine has a heavy load and the characteristics of the high-speed rotation. Have crushing, coarse grinding function; high reliability, tight security devices to ensure that the equipment and personal safety; smooth operation, noise, energy efficient, high crushing efficiency; material moisture content, moisture content of up to 8 percent; low wear and tear of wearing parts, all wearing parts are made of high-quality wear-resistant materials at home and abroad, and long service life. A small amount of wear parts made ????of extra-hard wear-resistant material, small size, light weight, easy to replace parts. Inside the vortex chamber airflow self-circulation, dust pollution. Impeller whirl crushing cavity lining material from significantly reduce the wear parts cost and maintenance workload. The production process, the stone can be formed to protect the bottom, the body no wear and durability. Installation and diverse, mobile installation. Products are cubic, bulk density, small iron contamination. Can be used for stone shaping machine.
Liming Vertical Impact Crusher:
Liming Heavy Industry is committed to producing the best mechanical crushing equipment, capable of producing various types of crusher and mill, and reached the leading level in the world. We are a trustworthy vertical impact crusher manufacturer capable of producing all types of vertical impact crusher, good quality and reasonable prices. Liming Heavy Industry production of vertical impact crusher is a set of similar products at home and abroad, the successful experience, devote themselves to come up with an energy-efficient crushing equipment. Medium-sized vertical impact crusher is one of the leading products of the company, especially in the design and production of large crusher mill at the absolute leading level at home and abroad.
If you need any help of vertical impact crusher, please contact us directly. We aim to provide you with the best vertical impact crusher and the most economical reasonable solution, our experts will provide technical assistance at any time for you. Looking forwards to establish a long-term business relationship with you.
